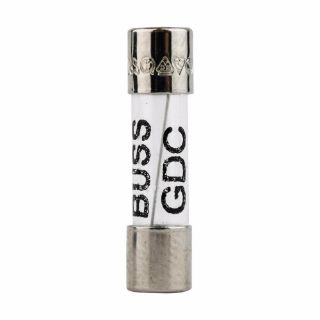

Actual Product May Vary From Image

GDC-5A BSF

Name: GDC-5A BSF
Brand: Bussmann
SKU: GDC-5A BSF
Availability: InStock

Bussmann GDC-5A GDC Electronic Small Dimension Time Delay Fuse, 5 A, 250 VAC/32 VDC, 50 A Interrupt, Cylindrical Body

Manufacturer: Bussmann

Manufacturer part number: GDC-5A

Availability: Expected Leadtime 21 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	5
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Electronic Small Dimension

Description

Bussmann Time Delay Fuse, Electronic Small Dimension, Series: GDC, Non-Indicating, Non-Rejection, 5 A, 250 VAC/32 VDC, 50 A Interrupt, 50 Hz, 2 min, 600 ms, 10 s, 150 ms, 3 s, 20 ms, 300 ms Response, Ferrule Terminal, Clip/Holder Mount, Cylindrical Body Type, Single Element, Glass, 5.2 mm Dia x 20 mm H Body Size

Application

Electronic Circuits

Standards

cURus Guide JDYX2/JDYX8 | UL File No. E19180 | IMQ File E1921 | CA03.00530 | MITI/JET File No. JET1641-31003-1005

Features

50 A at 250 VAC interrupt rating

Specifications

Amperage Rating:	5 A
Body Size:	5.2 mm Dia x 20 mm H
Body Type:	Cylindrical
Country of Origin:	CN
Element:	Single
Frequency Rating:	50 Hz
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	50 A
Material:	Glass
Mounting Type:	Clip/Holder
Rejection/Non-Rejection:	Non-Rejection
Response Time:	2 min, 600 ms, 10 s, 150 ms, 3 s, 20 ms, 300 ms
Series:	GDC
Terminal Type:	Ferrule
Voltage Rating:	250 VAC
