Home / GESCT-4 KIL

GESCT-4 KIL

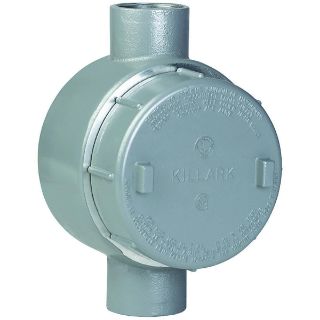

Picture of GESCT-4 KIL
Actual Product May Vary From Image

Product Details

Manufacturer:
Killark
Manufacturer part number:
GESCT-4
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 49 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$200.00 / EA

Description

Brand Name

Killark®

Type

Type-C

Description

K-PAK® packaging enables Killark® distributors to feature fast-moving products in counter display areas. Killark® best selling standard location products have been repackaged into smaller shelf packs for effective product family presentation.
Killark®, GESCT-4, Conduit Outlet Body, Type-C, Series: GES, 1-1/4 in Hub, 2 Hubs, 42 cu-in Capacity, Form 1, Thread Connection, Copper Free Aluminum, Powder Coated, Gray, 5-1/16 in H x 7-5/16 in W x 4-1/8 in D Dimensions

Application

Hazardous Locations

Standards

UL 886 | UL 1203 | UL File No. E10514 | CSA C22.2 No. 30 | CSA File No. LR11716 | Class I, Zone 1, 2, Group IIA | Class II, Div 1, 2, Group E, F, G | Federal Specification W-C-586D | Military Specification F-28675

Features

  • GE conduit outlet boxes have GEC series has water shedding cover suitable for wet locations when mounted in upright position
  • Taper threaded hubs provide ground continuity
  • Smooth integral hub bushing to protect conductor insulation when pulling
  • Internally threaded cover openings for additional wiring room
  • Green ground screw standard
  • External cover threads on body protecting conductors from damage during pulling, no pinching of conductors during cover installation
  • Copper free aluminum (less than 4/10 of 1%)
  • Act as pull and splice boxes, interconnect lengths of conduit, change conduit direction
  • GE series conduit boxes are installed in conduit systems within hazardous areas to protect conductors in threaded rigid conduit

Specifications

Body Type:C
Capacity:42 cu-in
Color:Gray
Connection Type:Thread
Country of Origin:MX
Dimensions:5-1/16 in H x 7-5/16 in W x 4-1/8 in D
Finish:Powder Coated
Form:Form 1
Hub Size:1-1/4 in
Material:Copper Free Aluminum
Number of Hubs:2
Series:GES
