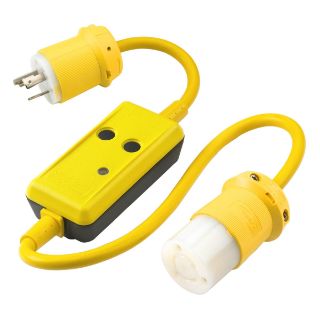

GFP3C20MTL HWD

Name: GFP3C20MTL HWD
Brand: Hubbell Wiring Device-Kellems
SKU: GFP3C20MTL HWD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

GFP3C20MTL

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

3-Wire Extra Heavy Duty Fabricated Locking Manual Reset Portable

Description

Wiring Device-Kellems Circuit Guard® Twist-Lock® GFCI Line Cord, 3-Wire Extra Heavy Duty Fabricated Locking Manual Reset Portable, 14 AWG Conductor, 3 Conductors, Copper Conductor, 3 ft Length, Multi Strands, 0.245 in OD, 15 A, 120 VAC, Elastomer Insulation, PVC Jacket, -30 to 150 deg F, Yellow

Application

Commercial, Industrial and Power Protection Applications

Standards

CSA Certified | UL 498/817/943 Class A File No. E41978 | NEMA WD1/WD5/IP21

Features

Fabricated construction
Unit must be reset by pushing the reset button upon plug-in and after loss of primary power
After a ground fault condition, unit must be reset by pushing the reset button
Ideal for applications where operator injury might occur if equipment were to restart after a power failure
0.95 maximum humidity
60 Hz frequency rating
0.025 s trip time, 4 to 6 mA trip level
120 VAC, 10 to 15% voltage range
Locking device style

Specifications

Amperage Rating:	15 A
Color:	Yellow
Conductor Size:	14 AWG
Conductor Type:	Copper
Country of Origin:	CN
End Style:	Male/Female
Insulation Material:	Elastomer
Jacket Material:	PVC
Length:	3 ft
Number of Conductors:	3
Outside Diameter:	0.245 in
Strands:	Multi
Temperature Rating:	-30 to 150 deg F
Voltage Rating:	120 VAC
