GFR5362SGGY HWD

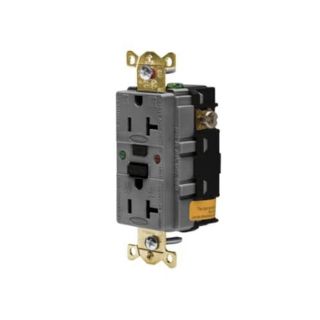

Picture of GFR5362SGGY HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
GFR5362SGGY
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Decorator Duplex Heavy Duty Standard Self-Test Tamper/Weather-Resistant

Description

Hubbell AUTOGUARD GFCI receptacles continually test and monitor for people protection capability automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto-monitoring is conducted continuously within every 30 seconds. Also, clear visual indicators are provided on the device face representing power status, trip condition, ground fault condition and end of life status. In addition, for added safety, power will be denied to the receptacle face if reverse wiring of line and load was to occur.
Wiring Device-Kellems AUTOGUARD® Style Line GFCI Receptacle, 1-Phase Decorator Duplex Heavy Duty Standard Self-Test Tamper/Weather-Resistant, 125 VAC, 20 A, 1 hp, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Industrial Grade, -30 to 150 deg F, Screw Terminal, Composite/Polybutylene Terephthalate/Thermoplastic, Gray, 1.75 in W x 1.47 in D Dimensions

Application

Extra Heavy Duty Industrial, Dry Locations and Indoor Applications

Standards

ARRA Compliant | Buy American Act Compliant | ANSI C-73 | UL 498 | UL 943 File No. E41978 | CSA Certified | NEMA WD-1/WD-5/WD-6 | NEC Approved | CEC Certified | Federal Specification

Features

  • 10 kA short circuit current rating
  • Limits improper access to energized contacts
  • Power indication
  • Ground fault indicator
  • No power at face if reverse wired

Specifications

Amperage Rating:20 A
Color:Gray
Country of Origin:KR
Dimensions:1.75 in W x 1.47 in D
Frequency Rating:60 Hz
Grade:Commercial/Industrial
Horsepower:1 hp
Material:Composite/Polybutylene Terephthalate/Thermoplastic
NEMA Rating:NEMA 5-20R
Number of Poles:2
Number of Wires:3
Temperature Rating:-30 to 150 deg F
Terminal Type:Screw
Voltage Rating:125 VAC
