GFR8200HLATR HWD

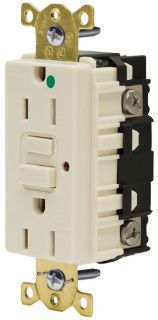

Wiring Device-Kellems Circuit Guard® GFR8200HLATR Self-Grounding Staple Tamper/Weather Resistant GFCI Receptacle With LED Indicator, Automatic Grounding Clip, 125 VAC, 15 A, 2 Poles, 3 Wires, Light Almond
Manufacturer part number: GFR8200HLATR
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Wiring Device-Kellems

Type

Self-Grounding Staple Tamper/Weather Resistant

Description

Wiring Device-Kellems Circuit Guard® GFCI Receptacle, Self-Grounding Staple Tamper/Weather Resistant, 125 VAC, 15 A, 1/2 hp, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial/Hospital Grade, -30 to 150 deg F, Back/Side Wire Terminal, Nylon, Light Almond, 3.81 in H x 1.75 in W x 1.47 in D Dimensions

Standards

ARRA Compliant | Buy American Act Compliant | UL 943 | CSA Certified

Features

  • Patented tamper resistant protection
  • Open circuit condition eliminates false assumption of protection at face
  • Flashing red indicates device has lost capability to provide protection
  • Open terminal design
  • Automatic grounding feature
  • Internal back wiring

Specifications

Amperage Rating:15 A
Color:Light Almond
Country of Origin:CN
Dimensions:3.81 in H x 1.75 in W x 1.47 in D
Frequency Rating:60 Hz
Grade:Commercial/Hospital
Horsepower:1/2 hp
Material:Nylon
NEMA Rating:NEMA 5-15R
Number of Poles:2
Number of Wires:3
Temperature Rating:-30 to 150 deg F
Terminal Type:Back/Side Wire
Voltage Rating:125 VAC
