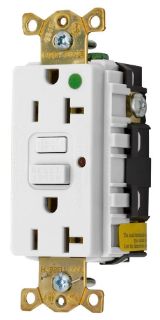

GFR8300HWLA HWD

Name: GFR8300HWLA HWD
Brand: Hubbell Wiring Device-Kellems
SKU: GFR8300HWLA HWD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

GFR8300HWLA

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

Grounding

Description

Wiring Device-Kellems Circuit Guard® GFCI Receptacle, Grounding, 125 VAC, 20 A, 1 hp, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial/Hospital Grade, -30 to 66 deg C, Back/Side Wire Terminal, Thermoplastic, White, 3.3 in H x 1.75 in W x 1.47 in D Dimensions

Standards

UL 498 | 943 | E41978 Listed | CSA LR-24886 Certified | NEC | CEC | OSHA Compliant

Features

4 to 6 mA trip level
0.025 sec trip time
0.95 max humidity
AUTOGUARD 10000 A maximum interrupting capacity
Thermoplastic or composite material
14 to 10 AWG solid or stranded copper conductor terminal accommodation

Includes

Matching Wallplate

Specifications

Amperage Rating:	20 A
Color:	White
Country of Origin:	CN
Dimensions:	3.3 in H x 1.75 in W x 1.47 in D
Frequency Rating:	60 Hz
Grade:	Commercial/Hospital
Horsepower:	1 hp
Material:	Thermoplastic
NEMA Rating:	NEMA 5-20R
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-30 to 66 deg C
Terminal Type:	Back/Side Wire
Voltage Rating:	125 VAC
