GFTWRST20ALU HWD

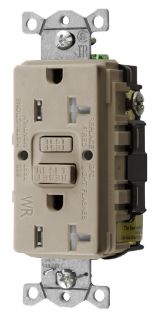

Picture of GFTWRST20ALU HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
GFTWRST20ALU
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

Decorator Duplex Heavy Duty Self-Test Straight Blade Tamper/Weather Resistant

Description

Wiring Device-Kellems AUTOGUARD® Style Line GFCI Receptacle, Decorator Duplex Heavy Duty Self-Test Straight Blade Tamper/Weather Resistant, 125 VAC, 20 A, 1 hp, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, -30 to 150 deg F, Screw Terminal, Nylon/Thermoplastic, Almond, 1.75 in W x 1.47 in D Dimensions

Application

Dry Locations and Indoor Applications

Standards

ANSI 73 | UL 498/943 File No. E41978 | CSA Certified | NEMA WD6 | NEC 406.12 | 406.9 | CEC Certified | ARRA Compliant | Buy American Act Compliant

Features

  • Patented shutter design for tamper-resistant protection
  • UV and corrosion resistance for harsh and damp applications
  • Patented AUTOGUARD self-test technology
  • Protects against line and load reversal, no power to the face or downstream if device is miswired
  • Assembled in USA

Specifications

Amperage Rating:20 A
Color:Almond
Country of Origin:US
Dimensions:1.75 in W x 1.47 in D
Frequency Rating:60 Hz
Grade:Commercial
Horsepower:1 hp
Material:Nylon/Thermoplastic
NEMA Rating:NEMA 5-20R
Number of Poles:2
Number of Wires:3
Temperature Rating:-30 to 150 deg F
Terminal Type:Screw
Voltage Rating:125 VAC
