GFTWRST83GY HWD

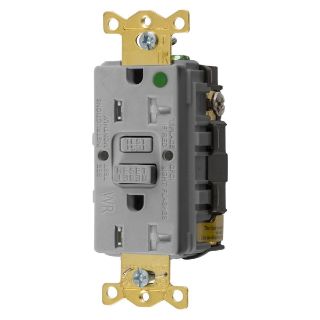

Picture of GFTWRST83GY HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
GFTWRST83GY
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Decorator Duplex Heavy Duty Standard Straight Blade Self-Test Tamper/Weather-Resistant Screw Mount

Description

Wiring Device-Kellems AUTOGUARD® GFCI Receptacle, Auto Grounding Heavy Duty Self-Test Standard Tamper/Weather-Resistant, 125 VAC, 20 A, 1 hp, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial/Hospital Grade, -30 to 150 deg F, Back/Side Wire Terminal, Nylon, Gray, 3.27 in H x 1.75 in W x 1.47 in D Dimensions

Application

Dry Locations and Indoor Applications

Standards

RoHS Compliant | ANSI 73 | UL 498/943 File No. E41978 | CSA Certified | NEMA WD6 | NEC 406.12/406.9 | CEC Approved

Features

  • Patented shutter design for tamper resistant
  • Patented AUTOGUARD® self test technology
  • Protects against line and load reversal, no power to the face or downstream if device is miswired

Includes

Multiple Drive Screw

Specifications

Amperage Rating:20 A
Color:Gray
Country of Origin:CN
Dimensions:1.75 in W x 1.47 in D
Frequency Rating:60 Hz
Grade:Commercial/Hospital
Horsepower:1 hp
Material:Composite
NEMA Rating:5-20R
Number of Poles:2
Number of Wires:3
Temperature Rating:-30 to 150 deg F
Terminal Type:Back/Side Wire
Voltage Rating:125 VAC
