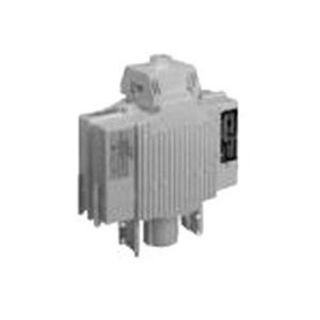

GHB611LMT APN

250 W HPS REDESIGN BAYMASTER
Manufacturer: Appleton
Manufacturer part number: G-HB611L-MT
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Appleton

Type

Ballast Housing Assembly

Description

Appleton G-HB611L-MT Baymaster 250/400 Ballast Housing Assembly, Lamp Type: 250 WTT High Pressure Sodium, Wattage: 295 WTT, Voltage Rating: 120/208/240/277 V, Amperage Rating: 0.85 AMP Starting, 1.1 AMP Operating At 277 V, Minimum Starting Temperature: 90 DEG C Supply Wire, Number Of Lamps: 1, Width: 6-1/4 IN, Height: 13-3/4 IN, Thermal Protection: Yes, Color: White Powder Coat Polyester, Ballast Type: Constant Wattage Autotransformer (C.W.A), Material: Finned, Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Standard: UL E109438 And 1598, CSA LR9349, For Baymaster 250/400 High Bay Luminaires

Application

For Baymaster 250/400 High Bay Luminaires

Standards

UL E109438 And 1598, CSA LR9349

Features

Integral ballast; quick, easy installation; For illumination of manufacturing, storage and other indoor areas; For 3/4 IN pendant mounting fixture

Specifications

Amperage Rating:0.85 AMP Starting, 1.1 AMP Operating At 277 V
Color:White Powder Coat Polyester
Country of Origin:MX
Height:13-3/4 IN
Lamp Type:250 WTT High Pressure Sodium
Minimum Starting Temperature:90 DEG C Supply Wire
Number of Lamps:1
Sub Brand:Baymaster 250/400
Thermal Protection:Yes
Voltage Rating:120/208/240/277 V
Wattage:295 WTT
Width:6-1/4 IN
