GHB71AL48E APN

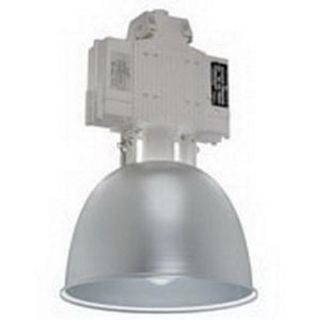

Appleton® Baymaster 250/400™ G-HB71AL-48E High Bay Luminaire, (1) High Pressure Sodium Lamp, 465 W Fixture, 480 VAC, White Powder Coat Polyester Housing
Manufacturer: Appleton
Manufacturer part number: G-HB71AL-48E
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Appleton®

Description

Appleton® Baymaster 250/400™ High Bay Luminaire, 480 VAC, 465 W Fixture, 0.8 to 1 A, High Pressure Sodium Lamp, Mogul Lamp Base, 1 Lamp, Constant Wattage Autotransformer (CWA) Ballast, Pendant Mount, Copper Free Aluminum Housing, White Powder Coat Polyester Housing, 16 in L x 16 in W x 23 in H

Application

For illumination of manufacturing, storage and other indoor areas

Standards

UL 1598 | UL File No. E109438 | CSA LR9349

Features

  • Standard Baymaster fixtures operate in high ambient temperatures
  • All units are suitable for minimum 90 deg C supply wire
  • High efficiency (up to 78% with 250 W HPS lamps) with exceptionally long lamp life economical to own and operate
  • Sockets are heavy duty mogul base with spring loaded, nickel plated center contact and heavy gauge, nickel plated brass screw shell with double lamp grips to prevent lamps from loosening due to vibration
  • Efficient, low glare, compact reflector
  • Reflector installs and adjusts to wide, medium or narrow distribution without tools by repositioning spring locks
  • Quick, easy installation
  • Open top reflector design keeps reflector clean because of thermal barrier and chimney effect and provides uplight to relieve contrast
  • Suffix E to catalog number indicates provision for 250 W quartz emergency lamp is desired (lamp not included)

Specifications

Amperage Rating:0.8 to 1 A
Ballast Type:Constant Wattage Autotransformer (CWA)
Country of Origin:MX
Dimensions:16 in L x 16 in W x 23 in H
Fixture Wattage:465 W
Housing Finish:White Powder Coat Polyester
Housing Material:Copper Free Aluminum
Lamp Base Type:Mogul
Lamp Type:High Pressure Sodium
Mounting Type:Pendant
Number of Lamps:1
Voltage Rating:480 VAC
