GHB810HMT APN

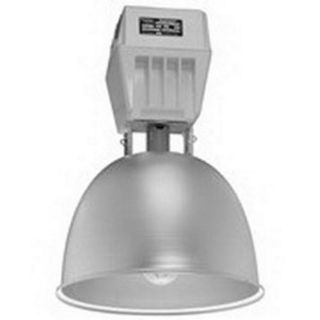

Picture of GHB810HMT APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
G-HB810H-MT
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Appleton

Type

High Bay Luminaire

Description

Baymaster 1000 High Bay Luminaire, Wattage: 1080 WTT, Voltage Rating: 120/208/240/277 V, Amperage Rating: 3.5 AMP Starting, 4 AMP Operating At 277 V, Lamp Included: No, Lamp Type: 1000 WTT Metal Halide, Number Of Lamps: 1, Ballast Type: Constant Wattage Autotransformer (C.W.A), Material: Finned, Aluminum Ballast, Porcelain Socket, Stainless Steel Lock, Brass Screws, Finish: Corrosion Polyester Ballast, Nickel Plated Center Contact Socket, Nickel Plated Screws, Socket Type: Mogul, Mounting: Pendant, Length: 20 IN, Width: 20 IN, Height: 29 IN, Ambient Temperature Range: 55 DEG C, Standard: UL 1598, UL File Number E109438, CSA LR9349, For Aircraft Hangers, Machine Shops, Foundries And Other Large-Area Working Environments

Application

For Aircraft Hangers, Machine Shops, Foundries And Other Large-Area Working Environments

Standards

UL 1598, UL File Number E109438, CSA LR9349

Features

Baymaster 1000 high bay luminaires provide bright, highly efficient lighting for large areas; Standard baymaster fixtures operate in high ambient temperatures; High efficiency (up to 76 PCT with 1000 WTT MH lamps) with exceptionally long lamp life - economical to own and operate; Integral ballast; Mogul base socket with spring loaded center contact and heavy gauge screw shell with double lamp grips prevent lamps from loosening due to vibration; Quick, easy installation; 3/4 IN pendant mounting; Multi-tap voltage

Specifications

Amperage Rating:3.5 AMP Starting, 4 AMP Operating At 277 V
Ballast Type:Constant Wattage Autotransformer (C.W.A)
Country of Origin:MX
Finish:Corrosion Polyester Ballast, Nickel Plated Center Contact Socket, Nickel Plated Screws
Height:29 IN
Lamp Included:No
Lamp Type:1000 WTT Metal Halide
Length:20 IN
Material:Finned, Aluminum Ballast, Porcelain Socket, Stainless Steel Lock, Brass Screws
Mounting:Pendant
Number of Lamps:1
Socket Type:Mogul
Sub Brand:Baymaster 1000
Voltage Rating:120/208/240/277 V
Wattage:1080 WTT
Width:20 IN

Resources

Spec SheetWarranty

Products Specifications

Ballast Type
CWA
Brand Name
Appleton
Lamp Type
1000 W Metal Halide
Number of Lamps
1
Type
High Bay Luminaire
Voltage Rating
120-277 V
Wattage
1080 W
