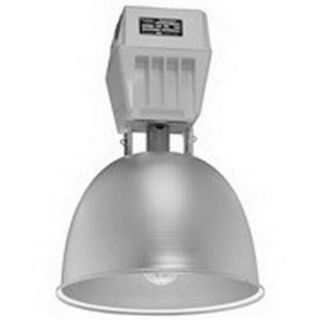

Actual Product May Vary From Image

GHB81AHMT APN

Name: GHB81AHMT APN
Brand: Appleton
SKU: GHB81AHMT APN
Availability: OutOfStock

Appleton® Baymaster 1000™ G-HB81AH-MT High Bay Luminaire With Ballast, (1) HID Metal Halide Lamp, 1080 W Fixture, 120/208/240/277 VAC, Corrosion Polyester Housing

Manufacturer: Appleton

Manufacturer part number: G-HB81AH-MT

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Appleton®

Description

Appleton® Baymaster 1000™ High Bay Luminaire, 120/208/240/277 VAC, 1080 W Fixture, 3.5 A Starting, 4 A Operating, HID Metal Halide Lamp, 1000 W Lamp, Mogul Lamp Base, 1 Lamp, Constant Wattage Autotransformer (CWA) Ballast, Pendant Mounting, Aluminum Housing Material, Corrosion Polyester Housing Finish, 20 in L x 29 in H x 20 in W Dimensions

Application

For aircraft hangers, machine shops, foundries and other large-area working environments

Standards

UL 1598 | UL File No. E109438 | CSA LR9349

Features

Baymaster 1000™ high bay luminaires provide bright, highly efficient lighting for large areas
Standard Baymaster fixtures operate in high ambient temperatures
High efficiency (up to 76 PCT with 1000 WTT MH lamps) with exceptionally long lamp life economical to own and operate
Integral ballast
Mogul base socket with spring loaded center contact and heavy gauge screw shell with double lamp grips prevent lamps from loosening due to vibration
Unique reflector design combines high efficiency with low glare in a compact size
Reflector installs and adjusts to wide, medium or narrow distribution without tools by repositioning spring locks
Quick, easy installation
Open top reflector design keeps reflector clean because of thermal barrier and chimney effect and provides uplight to relieve contrast

Specifications

Amperage Rating:	3.5 A Starting, 4 A Operating
Ballast Type:	Constant Wattage Autotransformer (CWA)
Country of Origin:	MX
Dimensions:	20 in L x 29 in H x 20 in W
Fixture Wattage:	1080 W
Housing Finish:	Corrosion Polyester
Housing Material:	Aluminum
Lamp Base Type:	Mogul
Lamp Type:	HID Metal Halide
Lamp Wattage:	1000 W
Mounting Type:	Pendant
Number of Lamps:	1
Voltage Rating:	120/208/240/277 VAC
