GHB81ALMT APN

Name: GHB81ALMT APN
Brand: Appleton
SKU: GHB81ALMT APN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

G-HB81AL-MT

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Type

Standard

Description

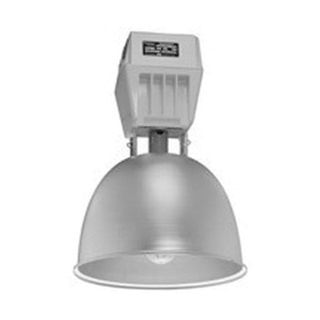

Appleton® High Bay Fixture, Standard, 120/277 VAC, 1100 W Fixture, 9.5/5.5/4.8/4.2 A, High Pressure Sodium Lamp, 1000 W Lamp, Mogul Lamp Base, 100000 hr Average Life, White Light, 4000 K Color, 82 CRI, Constant Wattage Autotransformer (CWA) Ballast, Tempered Glass Lens, 10315 Lumens, Pendant Mount, Aluminum Housing, Corrosion Polyester Housing, 29 in H x 20 in W

Application

For aircraft hangers, machine shops, foundries and other large area working environments

Standards

UL 1598 File No. E109438 | CSA LR9349

Features

Standard Baymaster fixtures operate in high ambient temperatures
High efficiency (up to 76% with 1000 W metal halide lamps) with exceptionally long lamp life makes these Baymaster fixtures unusually economical to own and operate
A wide range of ballasts and voltages are available for both domestic and export applications
Mogul base socket with spring loaded center contact and heavy gauge, screw shell with double lamp grips to prevent lamps from loosening due to vibration
The Baymaster reflector is a unique design that combines high efficiency with low glare in a compact size
Reflector installs and adjusts to wide or medium distribution (without tools) by repositioning spring locks
Open-top reflector design keeps reflector clean because of thermal barrier and chimney effect and provides up-light to relieve contrast

Specifications

Amperage Rating:	9.5/5.5/4.8/4.2 A
Average Life:	100000 hr
Ballast Type:	Constant Wattage Autotransformer (CWA)
Color Rendering Index (CRI):	82
Color Temperature:	4000 K
Country of Origin:	MX
Dimensions:	29 in H x 20 in W
Fixture Wattage:	1100 W
Housing Finish:	Corrosion Polyester
Housing Material:	Aluminum
Lamp Base Type:	Mogul
Lamp Type:	High Pressure Sodium
Lamp Wattage:	1000 W
Lens Type:	Tempered Glass
Light Color:	White
Lumens:	10315 Lumens
Mounting Type:	Pendant
Voltage Rating:	120/277 VAC
