GLM61ALMT APN

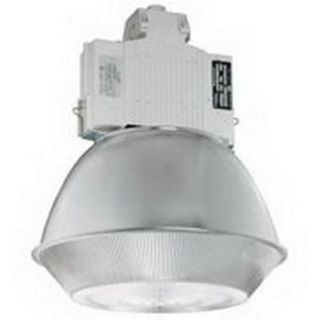

Picture of GLM61ALMT APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
G-LM61AL-MT
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Appleton®

Type

HID Prismatic

Description

Appleton® Lumenmaster 250™ Low Bay Luminaire, HID Prismatic, 120/208/240/277 VAC, 295 W Fixture, 2/1.2/1/0.85 A, High Pressure Sodium Lamp, 250 W Lamp, Mogul Lamp Base, Integral Ballast, Prismatic Refractor Lens, Pendant Mounting, Copper Free Aluminum Housing Material, Polyester Powder Coated/White Housing Finish, 20 in Dia x 26-3/4 in H Dimensions

Application

For manufacturing, storage and other indoor areas and damp locations

Standards

UL 1598 | E109438 Listed | CSA Certified | LR9349 Certified

Features

  • The Lumenmaster 250 series provides efficient, low glare lighting for areas that require low bay luminaires, mounted as low as 8 FT from the work plane
  • Two-to-one vertical-to-horizontal foot candles provides effective, efficient illumination of vertical surfaces
  • Reflector/refractor optical assembly is computer designed for uniform, wide light distribution with low glare
  • Ruggedly built, attractively styled, low profile design
  • Integral ballast
  • High efficiency (up to 74.6 PCT with 250 WTT HPS lamp) and long lamp life for economical operation
  • Injection-molded prismatic refractor lens is 100% virgin acrylic
  • A wide range of ballasts and voltages are available for both domestic and export applications
  • Mogul base socket with spring loaded center contact and heavy gauge, screw shell with double lamp grips to prevent lamps from loosening due to vibration

Specifications

Amperage Rating:2/1.2/1/0.85 A
Ballast Type:Integral
Country of Origin:MX
Dimensions:20 in Dia x 26-3/4 in H
Fixture Wattage:295 W
Housing Finish:Polyester Powder Coated/White
Housing Material:Copper Free Aluminum
Lamp Base Type:Mogul
Lamp Type:High Pressure Sodium
Lamp Wattage:250 W
Lens Type:Prismatic Refractor
Mounting Type:Pendant
Voltage Rating:120/208/240/277 VAC

Products Specifications

Ballast Type
CWA
Brand Name
Appleton
Lamp Type
250 W High Pressure Sodium
Number of Lamps
1
Type
Low Bay HID Prismatic Luminaire
Voltage Rating
120-277 V
Wattage
295 W
