GLM61BLMTE APN

Name: GLM61BLMTE APN
Brand: Appleton
SKU: GLM61BLMTE APN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

G-LM61BL-MTE

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Description

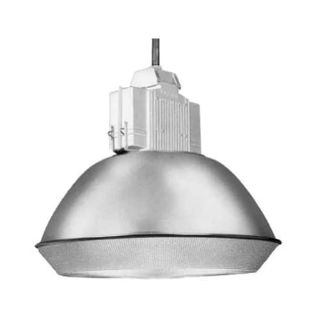

Appleton® Lumenmaster 400™ HID Low Bay Light Fixture, 120/208/240/277 V, Quartz High Pressure Sodium Lamp, 250 W Lamp, Constant Wattage Transformer Ballast, Injection-Molded Prismatic Acrylic Refractor Lens, Pendant Mount, Finned Copper-Free Aluminum Housing, White Polyester Powder Coated Housing, 30 in L x 30 in W x 26 in H

Application

For manufacturing, storage and other indoor areas where low bay luminaires are required and damp locations

Standards

CSA LR9349 | UL E85142/1598

Features

High efficiency (up to 81.6% with 400 W high pressure sodium lamp) combined with long lamp life, ensures the most economical operation
2-To-1 vertical-to-horizontal footcandles provides effective, efficient illumination of vertical surfaces
Reflector/refractor optical assembly is computer designed for uniform, wide light distribution with low glare
Injection-molded prismatic refractor lens is 100% virgin acrylic, minimum thickness is 3/16 in
Integral ballast
Capable of starting and operating the lamp in temperatures as low as -20 deg F/-28.9 deg C for pulse start metal halide lamps, -40 deg F/-40 deg C for high pressure sodium lamps
Mogul base sockets with spring loaded center contact and heavy gauge screw shell with double lamp grips to prevent lamps from loosening due to vibration
Furnished with socket installed and pre-wired
Without lamp
Multi-tap

Specifications

Ballast Type:	Constant Wattage Transformer
Country of Origin:	MX
Dimensions:	30 in L x 30 in W x 26 in H
Housing Finish:	White Polyester Powder Coated
Housing Material:	Finned Copper-Free Aluminum
Lamp Type:	Quartz High Pressure Sodium
Lamp Wattage:	250 W
Lens Type:	Injection-Molded Prismatic Acrylic Refractor
Mounting Type:	Pendant
Voltage Rating:	120/208/240/277 V
