GLM71BL48E APN

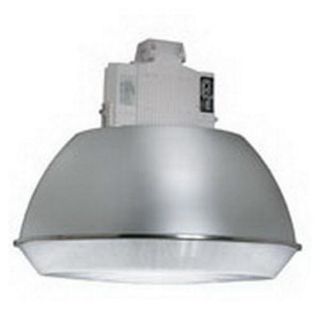

Appleton® Lumenmaster 400™ G-LM71BL-48E HID Low Bay Light Fixture, (1) Quartz High Pressure Sodium Lamp, 480 V, White Polyester Powder Coated Housing
Manufacturer: Appleton
Manufacturer part number: G-LM71BL-48E
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Appleton®

Description

Appleton® Lumenmaster 400™ HID Low Bay Light Fixture, 480 V, 1 A, Quartz High Pressure Sodium Lamp, 400 W Lamp, 1 Lamp, Constant Wattage Autotransformer (CWA) Ballast, Injection-Molded Prismatic Acrylic Refractor Lens, Pendant Mount, Finned Copper-Free Aluminum Housing, White Polyester Powder Coated Housing, 30 in L x 30 in W x 26 in H

Application

For manufacturing, storage and other indoor areas where low bay luminaires are required and damp locations

Standards

CSA LR9349 | UL E85142/1598

Features

  • High efficiency (up to 81.6% with 400 W high pressure sodium lamp) combined with long lamp life, ensures the most economical operation
  • 2-To-1 vertical-to-horizontal footcandles provides effective, efficient illumination of vertical surfaces
  • Reflector/refractor optical assembly is computer designed for uniform, wide light distribution with low glare
  • Injection-molded prismatic refractor lens is 100% virgin acrylic, minimum thickness is 3/16 in
  • Integral ballast
  • Capable of starting and operating the lamp in temperatures as low as -20 deg F/-28.9 deg C for pulse start metal halide lamps, -40 deg F/-40 deg C for high pressure sodium lamps
  • Mogul base sockets with spring loaded center contact and heavy gauge screw shell with double lamp grips to prevent lamps from loosening due to vibration
  • Furnished with socket installed and pre-wired
  • Without lamp

Specifications

Amperage Rating:1 A
Ballast Type:Constant Wattage Autotransformer (CWA)
Country of Origin:MX
Dimensions:30 in L x 30 in W x 26 in H
Housing Finish:White Polyester Powder Coated
Housing Material:Finned Copper-Free Aluminum
Lamp Type:Quartz High Pressure Sodium
Lamp Wattage:400 W
Lens Type:Injection-Molded Prismatic Acrylic Refractor
Mounting Type:Pendant
Number of Lamps:1
Voltage Rating:480 V
