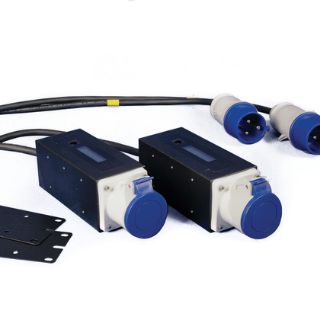

Picture of GM-A0904BL PAN
Actual Product May Vary From Image

GM-A0904BL PAN

Panduit® GM-A0904BL Gateway Enabled Zero RU Inline Meter, 400 VAC, 32 A, 50 to 60 Hz
Manufacturer: Panduit
Manufacturer part number: GM-A0904BL
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Panduit®

Type

Gateway Enabled

Description

The Zero-RU Inline Meter extends real-time aggregate power monitoring intelligence to any non-intelligent power distribution unit (PDU) device installed in a rack or cabinet enclosure. The inline meter is installed as part of a primary/secondary topology, where the all critical intelligence and power supply for the power adapter is retained within a connected gateway. The inline meter allows for multiple mounting options. Data captured from the inline meter is used to display operational data through connected gateway firmware or through Panduit® SmartZone™ Software platforms.
Panduit®, GM-A0904BL, Inline Meter, Gateway Enabled Zero RU, 400 VAC, 32 A, 50 to 60 Hz Frequency, +/-1% Accuracy, LCD Display, 3 ph, 1.5 m Cord Length, 14 x 3.2 in Dimensions, Metal/Zintec, Black

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | EN 60950-1:2006/A11:2009/A1:2010/A12:2011 | EN 55022: 2010+AC: 2011 | EN 55024: 2010 | EN 61000-3-2: 2006+A1:2009+A2:2009 | EN 61000-3-3: 2008

Features

  • Extended intelligence
  • Primary/secondary network topology
  • Connects to any PDU to enable aggregate monitoring of any new or existing third-party devices, cost-effectively maximizing resources
  • RJ45 connection
  • SmartZone™ software suite integration
  • Inline meter adds intelligent power monitoring capabilities to a non-intelligent basic rack PDUs

Includes

Commando Plugs, Socket

Specifications

Accuracy:+/-1%
Amperage Rating:32 A
Color:Black
Cord Length:1.5 m
Country of Origin:GB
Dimensions:14 x 3.2 in
Display Type:LCD
Frequency Rating:50 to 60 Hz
Material:Metal/Zintec
Phase:3
Voltage Rating:400 VAC
