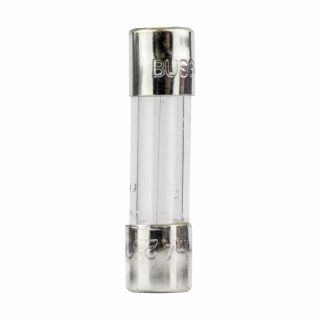

Picture of GMC-3-R BSF
Actual Product May Vary From Image

GMC-3-R BSF

Bussmann GMC-3-R Electronic Medium Small Dimension Time Delay Fuse, 3 A, 250 VAC/32 VDC, 100 A at 10 kA Interrupt, Cylindrical Body
Manufacturer: Bussmann
Manufacturer part number: GMC-3-R
Availability: Expected Leadtime 42 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 10
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...
$5.52

Product Details

Brand Name

Bussmann

Type

Electronic Medium Small Dimension

Description

Bussmann Time Delay Fuse, Electronic Medium Small Dimension, Series: GMC, Non-Indicating, 3 A, 250 VAC/32 VDC, 100 A at 10 kA Interrupt, 2/60 min Response, Ferrule Terminal, Clip/Holder Mounting, Cylindrical Body, Glass, 5.2 mm Dia x 20 mm H Body

Application

Electronic Circuit Applications

Standards

RoHS Compliant | UL 248-14, Guide JDYX, File No. E19180 | CSA Class 1422-01, File No. 53787 | CE Certified | MITI Approvd | KC Mark SU05011-4003

Features

  • 100 A at 250 VAC, 10 kA at 125 VAC interrupt rating
  • 60 min maximum at 135%, 2 min maximum at 200% response time

Specifications

Amperage Rating:3 A
Body Size:5.2 mm Dia x 20 mm H
Body Type:Cylindrical
Country of Origin:CN
Element:Single
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:100 A at 10 kA
Material:Glass
Mounting Type:Clip/Holder
Rejection/Non-Rejection:Non-Rejection
Response Time:2/60 min
Series:GMC
Terminal Type:Ferrule
Voltage Rating:250 VAC
