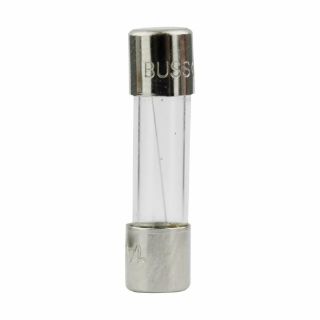

Actual Product May Vary From Image

GMC-500-R BSF

Name: GMC-500-R BSF
Brand: Bussmann
SKU: GMC-500-R BSF
Price: 5.52 USD
Availability: InStock

Bussmann GMC-500-R Electronic Medium Small Dimension Time Delay Fuse, 500 mA, 250 VAC/32 VDC, 35 A at 10 kA Interrupt, Cylindrical Body

Manufacturer: Bussmann

Manufacturer part number: GMC-500-R

Availability: Expected Leadtime 42 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	52
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$5.52

Qty:

Product Details

Brand Name

Bussmann

Type

Electronic Medium Small Dimension

Description

Bussmann Time Delay Fuse, Electronic Medium Small Dimension, Series: GMC, Non-Indicating, 500 mA, 250 VAC/32 VDC, 35 A at 10 kA Interrupt, 2/60 min Response, Ferrule Terminal, Clip/Holder Mounting, Cylindrical Body, Glass, 5 mm Dia x 20 mm L Body

Application

Electronic Circuit Applications

Standards

RoHS Compliant | UL 248-14, Guide JDYX, File No. E19180 | CSA Class 1422-01, File No. 53787 | CE Certified | KC Mark SU05011-4002

Features

35 A at 250 VAC, 10 kA at 125 VAC interrupt rating
60 min maximum at 135%, 2 min maximum at 200% response time

Specifications

Amperage Rating:	500 mA
Body Size:	5 mm Dia x 20 mm L
Body Type:	Cylindrical
Country of Origin:	CN
Element:	Single
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	35 A at 10 kA
Material:	Glass
Mounting Type:	Clip/Holder
Rejection/Non-Rejection:	Non-Rejection
Response Time:	2/60 min
Series:	GMC
Terminal Type:	Ferrule
Voltage Rating:	250 VAC
