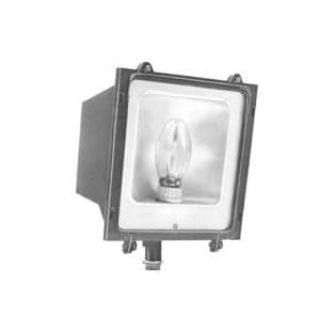

GMM450L12R APN

Name: GMM450L12R APN
Brand: Appleton
SKU: GMM450L12R APN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

G-MM450L-12R

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Description

Appleton® Areamaster Jr.™ Floodlight Fixture, Series: 1000, 120 VAC, 150 W Fixture, 2.2 to 1.5 A, High Pressure Sodium Lamp, 150 W Lamp, Medium Lamp Base, Integral Ballast, Tempered Glass Lens, Yoke Mounting, Aluminum Housing Material, Architectural Bronze Housing Finish, 12-1/4 in H x 9-7/8 in W x 7 in D Dimensions

Application

For security lighting, small sports areas, parking areas, apartment complexes, hotels and motels, work area lighting, accent, building facade and sign lighting

Standards

UL 1598

Features

HPS units use approximately 80% less energy than incandescent PAR-38 lamps and 70 to 75% less than quartz lamps and lumen output, the 50 W HPS unit is comparable totwo 150 W PAR 38 incandescent lamps, 70 W HPS to 300 W T-3 quartz and 100 W HPS to 500 W T-3 quartz
Beam pattern is NEMA type 7
Extra compact, high efficiency floodlights designed specifically for the small size of HID medium base lamps
Compact size permits use of existing poles for retrofitting quartz fixtures
Ruggedly built for dependable, vandal-resistant service
Attractively styled
Easy to install, aim and service, with easy access to interior
Durable architectural bronze polyester finish resists chipping, peeling and fading no matter what the weather or climate conditions
Heavy duty, deg-marked swivel mounting arm with 3/4 in pipe thread and locknut
Allows vertical and horizontal adjustment
Medium base porcelain socket with nickel plated contacts
Rated for 4 kV pulse
Furnished with 200 deg C leads, prewired to the ballast
Precision parabolic design, natural finish, aluminum for maximum efficiency
Patented hinged door has thermal shock and impact-resistant glass lens, secured within die-cast aluminum frame with two captive stainless hex head steel screws for watertight fit
HPF ballasts have non-PCB capacitors
Suitable for use in wet locations

Specifications

Amperage Rating:	2.2 to 1.5 A
Ballast Type:	Integral
Country of Origin:	MX
Dimensions:	12-1/4 in H x 9-7/8 in W x 7 in D
Fixture Wattage:	150 W
Housing Finish:	Architectural Bronze
Housing Material:	Aluminum
Lamp Base Type:	Medium
Lamp Type:	High Pressure Sodium
Lamp Wattage:	150 W
Lens Type:	Tempered Glass
Mounting Type:	Yoke
Series:	1000
Voltage Rating:	120 VAC
