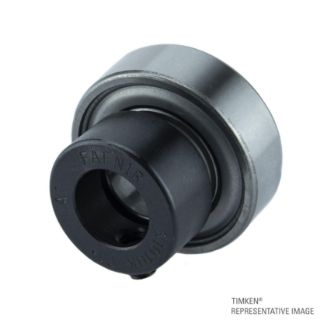

GN203KRRB TKN

Wide Inner Ring Ball Bearing Insert
Manufacturer: Timken
Manufacturer part number: GN203KRRB
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$594.16

Product Details

Brand Name

Timken

Description

Designed to maximize performance, Timken® Fafnir® ball bearing inserts are designed for straight shafts and can be positioned without shoulders, locknuts or adapters. Timken® locking options include set screws, self-locking collars and concentric collars. Timken Fafnir ball bearing inserts feature specialized product lines to solve specific application concerns. Our problem solver series helps prevent downtime by using superior technology to keep equipment running efficiently and improve your bottom line
Wide Inner Ring Ball Bearing Insert | 55.372 mm 2.18 in Bore | 120 mm 4.72 in OD | Eccentric

Specifications

Bearing Material:Steel
Bearing Type:Wide Inner Ring Bearing
Bore Type:Round
Cage (Retainer) Type:PRB Retainer
Cage Material:Nylon
Component (I/R; O/R assembly):Assembly
Duty Type:Heavy duty
Dynamic Load Rating:16100
Inner Race Width (in):2.875
Inner Race Width (mm):73.025
Internal Clearance:P(C3)
Load Rating UOM:LB
Locking Type:Eccentric
Lubrication Hole/Groove:yes
Material - Rolling Elements:Steel
Outer Diameter (in):4.72
Outer Diameter (mm):120
Outer Diameter Type:Spherical
Outer Race Width (in):1.22
Outer Race Width (mm):30.988
Overall Width (in):2.18
Overall Width (mm):55.372
Precision class:ISO Normal/ABEC1
Relubricatable:yes
Rolling Element:Ball
Shaft Size (in):2.18
Shaft Size (mm):55.372
Snap Ring:no
Static Load Rating:10000
