GOL3 KIL

Name: GOL3 KIL
Brand: Killark
SKU: GOL3 KIL
Availability: OutOfStock

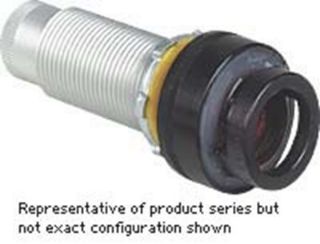

Actual Product May Vary From Image

Product Details

Manufacturer:

Killark

Manufacturer part number:

GOL3

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 20 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Killark®

Type

Extended

Description

Killark® Pilot Light Operator, Extended, Series: G Series, 6 in L x 1-35/64 in W x 1-35/64 in H Size, 110 to 120 VAC, NEMA 3/4/4X/7B/7C/7D/9E/9F/9G Enclosure, Aluminum

Application

For hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB and GCS Series boxes and B7, Y7 starter enclosures

Standards

ATEX 03ATEX1203 U | UL File No. E12379 | CSA File No. LR11714, Class I Divisions 1 and 2 Groups B, C, D, IIB, IIA, Zones 1 and 2, Class II Divisions 1 and 2 Groups E, F, G, Class III

Features

Operators are all aluminum except for certain movable parts which are stainless steel
All other parts such as screws are either stainless steel or plated steel
Threaded bodies are all 3/4 -14 NPSM thread
Control stations can be grouped into a single assembly thus reducing installation time and cost
Junction boxes may be used to mount operators along with glass lens for viewing internally mounted meters
Additional relays, timers, terminal blocks or other equipment may also be internally mounted to provide a single centralized control unit

Specifications

Color:	Blue
Country of Origin:	US
Enclosure Type:	NEMA 3/4/4X/7B/7C/7D/9E/9F/9G
Material:	Aluminum
Series:	G Series
Size:	6 in L x 1-35/64 in W x 1-35/64 in H
Voltage Rating:	110 to 120 VAC
