GRLB50A APN

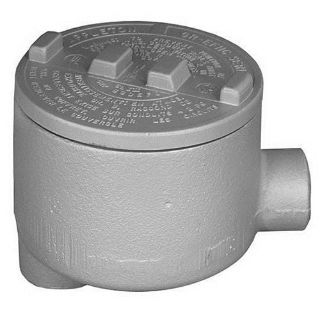

Picture of GRLB50A APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
GRLB50-A
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$133.43 / EA

Description

Brand Name

Appleton®

Type

LB-Style Dust-Ignitionproof Explosionproof

Description

Appleton® explosionproof and dust-ignitionproof GR and GRF conduit outlet boxes are furnished with internal ground screw and O-ring. They are ideal for use in indoor and outdoor classified locations. These corrosion-resistant outlet boxes provide access for maintece, allow the connection of different lengths of conduit, and for changing the direction of conduit.
Appleton® UNILETS® Conduit Outlet Box, LB-Style Dust-Ignitionproof Explosionproof, Series: GR Series, 1/2 in, 3.38 in Cover Opening Size, 18 cu-in, For Use With: Threaded Metallic Conduit System, Aluminum, Epoxy Powder Coated, 3-3/4 in H x 3-3/4 in W x 2-1/4 in D

Application

Indoor/Outdoor Applications

Standards

Class 1, Zone 1 and 2 IIA and IIB | UL File No. E10444 | CSA C22.2 No. 25/30 | CSA 013017 | Class I, Div 1 and 2, Groups B, C, D Class II, Div 1 and 2, Groups E, F, G Class III

Features

  • Offers ten hub arrangements
  • Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
  • General purpose wiring
  • Function as sealing fittings when used with sealing covers
  • Internally threaded body with externally threaded cover
  • Covers have pry notches for bar or wrench
  • Accommodate sealing, dome, hub and union hub covers and canopies
  • Standard O-rings provide raintight fit
  • Internal ground screw standard
  • Smooth, rounded integral bushing in each hub type box protects conductor insulation
  • Complies with a wide range of classified area requirements
  • Corrosion resistant
  • For pulling of wires
  • Connect conduit lengths and change direction of conduit runs
  • Provide access for maintece

Includes

Internal Ground Screw and O-Ring

Specifications

Capacity:18 cu-in
Country of Origin:MX
Cover Opening Size:3.38 in
Dimensions:3-3/4 in H x 3-3/4 in W x 2-1/4 in D
Finish:Epoxy Powder Coated
Material:Aluminum
Series:GR Series
Size:1/2 in
Suitable For Use With:Threaded Metallic Conduit System
