GS 19 SPIDER 98A SHORE LOV

Name: GS 19 SPIDER 98A SHORE LOV
Brand: Lovejoy
SKU: GS 19 SPIDER 98A SHORE LOV
Price: 28.16 USD
Availability: OutOfStock

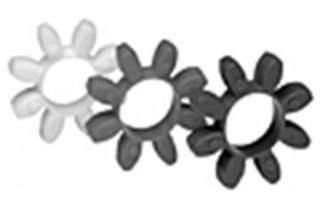

Actual Product May Vary From Image

Product Details

Manufacturer:

Lovejoy

Manufacturer part number:

68514467251

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

$28.16 / EA

Description

Brand Name

Lovejoy®

Type

Solid Center

Description

The GS Series spider features a straight center of the spider tooth, providing higher stiffness due to coupling prestress. The crowning of the ends of the spider legs allows for misalignment, while the curved jaws and solid spider center provide high-speed capability. The jaws of the hubs and the spider legs are chamfered to provide easy assembly. The GS Series coupling design also allows the blind assembly in tight spaces. Raised spider dots on the legs of the spider ensure proper spacing of hubs and spider.

Lovejoy® Elastomeric Spider, Solid Center, Series: GS Series, For Use With: GS Series Curved Jaw Coupling, Specifications: Size 19, 98 Shore A, 212 deg F, Urethane, Red, 1.57 in Dia x 0.470 in THK

Standards

ECCN EAR99

Features

Urethane spiders provide high abrasion resistance and elasticity, along with good damping characteristics
The spiders are offered in a variety of shore hard nesses, each providing a different level of torque capacity, damping and chemical resistance
The 95/98A shore spider (red) offers higher torque than the standard 92 shore, but retains greater damping capacity compared to the 64D shore insert (green)
The standard curved jaw spider design has a hole in the center to accommodate small between shaft end measurements
The curved jaw spider's urethane material also resists oil, dirt, sand, grease, moisture, many solvents, as well as atmospheric effects of ozone

Specifications

Color:	Red
Country of Origin:	US
Dimensions:	1.57 in Dia x 0.470 in THK
Material:	Urethane
Series:	GS Series
Specifications:	Size 19, 98 Shore A, 212 deg F
Suitable For Use With:	GS Series Curved Jaw Coupling
