GSM831HHMTN APN

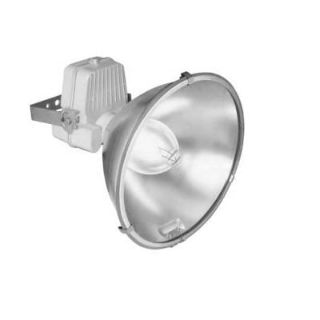

Picture of GSM831HHMTN APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
G-SM831HH-MTN
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Appleton®

Type

Heavy Duty

Description

Appleton® Beam-Master™ Floodlight Fixture, Heavy Duty, Series: 1000, 120/208/240/277 VAC, 1000 W Fixture, 2/2.3 A, HID Metal Halide Lamp, 1000 W Lamp, Mogul Lamp Base, Constant Wattage Autotransformer (CWA) Ballast, Glass Lens, Slip Fitter Mounting, Malleable Iron Housing Material, Zinc Plated Housing Finish, 22.88 in H x 24 in W Dimensions

Application

For to illuminate large areas such as building facades, ship loading docks, truck terminals, security lighting, airports, athletic stadiums and sports fields

Standards

UL 1598 File No. E85142 | CSA File No. LR9349

Features

  • General purpose and heavy duty units
  • Compact design combines reflector assembly and ballast housing as a single unit easier to wire and install
  • Balanced weight distribution allows swing-over design for easy relamping and servicing
  • Sturdy and rugged, withstands high vibration and rugged usage
  • Breather openings allow unit to breathe, yet keep dirt and moisture out
  • Floodlights have aiming device, plus 180 deg vertical positioning scale
  • Fully adjustable horizontally with crossarm bracket or poletop mount
  • Swing over design with a memory locking device for accurate return to pre-aimed position after servicing
  • Mogul base porcelain socket has heavy gauge brass, nickel plated, double lamp-grip screw shell and spring-loaded center contact
  • Heavy duty models have heavy shroud for protection against severe weather, such as high winds and hail
  • Cord enters through a weatherproof cord grip

Specifications

Amperage Rating:2/2.3 A
Ballast Type:Constant Wattage Autotransformer (CWA)
Country of Origin:MX
Dimensions:22.88 in H x 24 in W
Fixture Wattage:1000 W
Housing Finish:Zinc Plated
Housing Material:Malleable Iron
Lamp Base Type:Mogul
Lamp Type:HID Metal Halide
Lamp Wattage:1000 W
Lens Type:Glass
Mounting Type:Slip Fitter
Series:1000
Voltage Rating:120/208/240/277 VAC
