GSM931HMTN APN

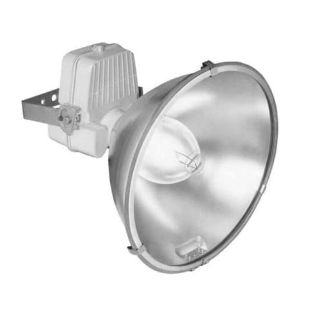

Picture of GSM931HMTN APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
G-SM931H-MTN
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Appleton®

Type

General Purpose

Description

Appleton® Beam-Master™ Floodlight Fixture, General Purpose, 120/208/240/277 VAC, 1610 W Fixture, 14/8/7/6 A, HID Metal Halide Lamp, 1500 W Lamp, Mogul Lamp Base, Constant Wattage Autotransformer (CWA) Ballast, Glass Lens, Class H Insulation, NEMA 3 Enclosure, Malleable Iron Housing Material, Zinc Plated Housing Finish, 22.88 in Dia x 24 in W Dimensions

Application

For building facades, ship loading dock, truck terminals, security lighting, airports, athletic stadiums and ports fields

Standards

UL 1598 File No. E85142 | CSA File No. LR934

Features

  • Compact design combines reflector assembly and ballast housing as a single unit easier to wire and install
  • Balanced weight distribution allows swing-over design for easy relamping and servicing
  • Sturdy and rugged, withstands high vibration and rugged usage
  • Breather openings allow unit to breathe, yet keep dirt and moisture out
  • Floodlights have aiming device, plus 180 deg vertical positioning scale
  • Fully adjustable horizontally with crossarm bracket or poletop mount
  • Swing over design with a memory locking device for accurate return to pre-aimed position after servicing
  • Mogul base porcelain socket has heavy gauge brass, nickel plated, double lamp-grip screw shell and spring-loaded center contact
  • Heavy duty models have heavy shroud for protection against severe weather, such as high winds and hail
  • Aluminum reflector material
  • Shock and impact-resistant glass lens
  • One piece silicone rubber gasket
  • Stainless steel frames and clamps
  • Cast aluminum socket/ballast
  • 50.1% beam efficiency
  • 13.5 A (starting)/14 A (operating) at 120 VAC, 7.7 A (starting)/8 A (operating) at 208 VAC, 6.7 A (starting)/7 A (operating) at 240 VAC, 5.9 A (starting)/6 A (operating) at 277 VAC amperage rating
  • Zinc plated/ chromate sealed/ bronze polyester housing finish

Specifications

Amperage Rating:14/8/7/6 A
Ballast Type:Constant Wattage Autotransformer (CWA)
Country of Origin:MX
Dimensions:22.88 in Dia x 24 in W
Enclosure Type:NEMA 3
Fixture Wattage:1610 W
Housing Finish:Zinc Plated
Housing Material:Malleable Iron
Insulation Type:Class H
Lamp Base Type:Mogul
Lamp Type:HID Metal Halide
Lamp Wattage:1500 W
Lens Type:Glass
Voltage Rating:120/208/240/277 VAC
