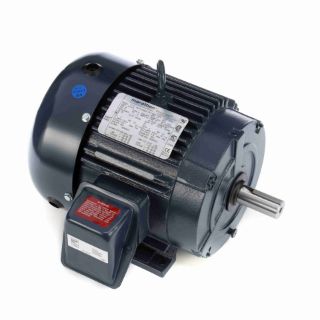

Actual Product May Vary From Image

GT1010A MAR

Name: GT1010A MAR
Brand: Marathon Electric Motors
SKU: GT1010A MAR
Price: 675.44 USD
Availability: InStock

3 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 182T Frame, TEFC

Manufacturer: Marathon Electric Motors

Manufacturer part number: GT1010A

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	1
Loading...

$675.44

Qty:

Product Details

Alternate Supplier #

182TTFCD6026

Features

Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007 Hazardous Duty Division 2, Zone 2, Class I, Groups A,B,C,D, Temperature code T2B IP55 enclosure on cast iron frames Inverter Duty 10:1 Variable Torque and up to 10:1 Constant Torque Class F Insulation Standard F1, reversible to F2 assembly. Dual frame mounting holes. C-face addition may result in non-NEMA "BA" dim. For new "BA" dim consult chart found in modification section

Specifications

Assembly/Box Mounting:	F1/F2 CAPABLE
C Dim (IN):	15.08
CE:	Y
Connection Drawing Number:	EE7308
Country of Origin:	Mexico
CSA:	Y
Current:	8.0/4.0
DE Bearing Size:	6206
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	89.5
Electrical Type:	Squirrel Cage Inverter Rated
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Length (IN):	5.85
Frame Material:	Cast Iron
Frame Size:	182
Frame Suffix:	T
Frame Type:	182T
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	3
Insulation Class:	F
IP Code:	55
KVA Code:	K
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6205
ODE Bearing Type:	Ball
Outline Drawing Number:	SS620855-182T
Phases:	3
Power Factor:	78
Power Rating (HP):	3
Power Rating (kW):	2.2
Resistance Main:	4.15
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	1.125
Shaft Extension:	2.75
Shaft Type:	T
Speed:	1762
Speed Max:	1762
Starting Type:	Line Or Inverter
Type of Overload Protector:	No
UL:	Listed
Voltage:	230/460

Resources

Engineering Drawing Spec Sheet
