GT1030A MAR

Name: GT1030A MAR
Brand: Marathon Electric Motors
SKU: GT1030A MAR
Price: 3,067.15 USD
Availability: OutOfStock

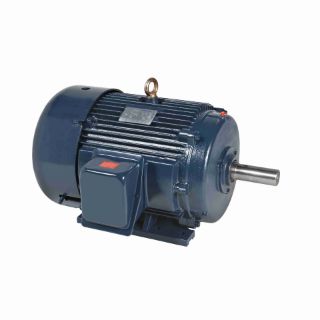

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

GT1030A

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$3,067.15 / EA

Description

Alternate Supplier #

286TSTFCD6001

Features

Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2021 Hazardous Duty Division 2, Zone 2, Class I, Groups A,B,C,D, Temperature code T2B IP55 enclosure on cast iron frames Inverter Duty 10:1 Variable Torque and up to 10:1 Constant Torque Class F Insulation Standard F1, reversible to F2 assembly. Dual frame mounting holes.

Specifications

Assembly/Box Mounting:	F1/F2 CAPABLE
C Dim (IN):	26.77
CE:	Y
Connection Drawing Number:	A-EE7308AA
Country of Origin:	Mexico
CSA:	Y
Current:	71.0/35.5
DE Bearing Size:	6311
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	91.7
Electrical Type:	Squirrel Cage Inverter Rated
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Material:	Cast Iron
Frame Size:	286
Frame Suffix:	TS
Frame Type:	286TS
Frequency:	60
Harmonized Tariff Code:	8501.52.8040
HP:	30
Insulation Class:	F
IP Code:	55
KVA Code:	G
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	2
Number of Speeds:	1
ODE Bearing Size:	6211
ODE Bearing Type:	Ball
Outline Drawing Number:	SS620698-286
Phases:	3
Power Factor:	86.5
Power Rating (HP):	30
Power Rating (kW):	22.4
Resistance Main:	.338
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	1.625
Shaft Extension:	3.25
Shaft Type:	TS
Speed:	3550
Speed Max:	3550
Starting Type:	Wye Start Delta Run Or Inverter
Type of Overload Protector:	No
UL:	Listed
Voltage:	230/460
