GT1031A MAR

Name: GT1031A MAR
Brand: Marathon Electric Motors
SKU: GT1031A MAR
Price: 2,949.08 USD
Availability: OutOfStock

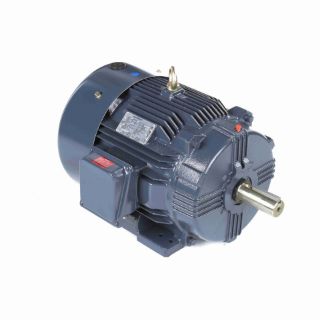

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

GT1031A

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$2,949.08 / EA

Description

Alternate Supplier #

286TTFCD6026

Features

Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2022 Hazardous Duty Division 2, Zone 2, Class I, Groups A,B,C,D, Temperature code T2B IP55 enclosure on cast iron frames Inverter Duty 10:1 Variable Torque and up to 10:1 Constant Torque Class F Insulation Standard F1, reversible to F2 assembly. Dual frame mounting holes.

Specifications

Assembly/Box Mounting:	F1/F2 CAPABLE
C Dim (IN):	28.14
CE:	Y
Connection Drawing Number:	A-EE7308AA
Country of Origin:	Mexico
CSA:	Y
Current:	72.5/36.5
DE Bearing Size:	6311
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	93.6
Electrical Type:	Squirrel Cage Inverter Rated
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Material:	Cast Iron
Frame Size:	286
Frame Suffix:	T
Frame Type:	286T
Frequency:	60
Harmonized Tariff Code:	8501.52.8040
HP:	30
Insulation Class:	F
IP Code:	55
KVA Code:	G
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6211
ODE Bearing Type:	Ball
Outline Drawing Number:	SS620704-286
Phases:	3
Power Factor:	83
Power Rating (HP):	30
Power Rating (kW):	22.4
Resistance Main:	.2455
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	1.875
Shaft Extension:	4.62
Shaft Type:	T
Speed:	1775
Speed Max:	1775
Starting Type:	Wye Start Delta Run Or Inverter
Type of Overload Protector:	No
UL:	Listed
Voltage:	230/460
