GT1310 MAR

Name: GT1310 MAR
Brand: Marathon Electric Motors
SKU: GT1310 MAR
Availability: OutOfStock

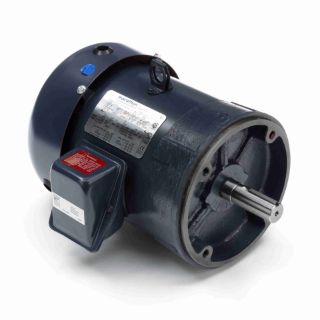

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

GT1310

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

182TTFB6029

Features

Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007 Cast iron frame and brackets Inverter Duty 10:1 Variable Torque and 10:1 Constant Torque Class F Insulation Standard assembly F1, reversible to F2 assembly Will become build-up item when current stock is gone

Specifications

Assembly/Box Mounting:	F1/F2 CAPABLE
C Dim (IN):	15.75
CE:	Y
Connection Drawing Number:	A-EE7308
Country of Origin:	China
CSA:	Y
Current:	7.8/3.9
DE Bearing Size:	6206
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	89.5
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Material:	Rolled Steel
Frame Size:	182
Frame Suffix:	TC
Frame Type:	182TC
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	3
Insulation Class:	F
IP Code:	43
KVA Code:	K
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Round
NEMA Design:	B
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6205
ODE Bearing Type:	Ball
Outline Drawing Number:	SS620307-182TC
Phases:	3
Power Factor:	82
Power Rating (HP):	3
Power Rating (kW):	2.2
Resistance Main:	3.76
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	1.125
Shaft Extension:	2.62
Shaft Type:	T
Speed:	1750
Speed Max:	1750
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	230/460
