GT2506 MAR

Name: GT2506 MAR
Brand: Marathon Electric Motors
SKU: GT2506 MAR
Availability: OutOfStock

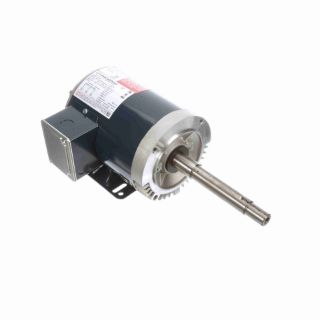

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

GT2506

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

145TTDR16017

Features

Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007 Inverter Duty 10:1 Variable Torque and 2:1 Constant Torque Class F Insulation F1 mounting only, cannot reassemble to F2

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	16.18
CE:	Y
Connection Drawing Number:	A-EE7300
Country of Origin:	United States of America
CSA:	Y
Current:	2.2
DE Bearing Size:	6206
DE Bearing Type:	Ball
Duty:	Continous
Efficiency:	86.5
Electrical Type:	Squirrel Cage Inverter Rated
Enclosure Type:	Drip Proof
Frame Length (IN):	7.6
Frame Material:	Rolled Steel
Frame Size:	145
Frame Suffix:	JP
Frame Type:	145JP
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	2
Insulation Class:	F
IP Code:	22
KVA Code:	L
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	2
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	A-100132-706
Phases:	3
Power Factor:	78.5
Power Rating (HP):	2
Power Rating (kW):	1.5
Resistance Main:	7.6
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	0.875
Shaft Extension:	7.31
Shaft Type:	JP
Speed:	3510
Speed Max:	3510
Starting Type:	Line Or Inverter
Type of Overload Protector:	No
UL:	Recognized
Voltage:	575
