GT3109 MAR

Name: GT3109 MAR
Brand: Marathon Electric Motors
SKU: GT3109 MAR
Availability: OutOfStock

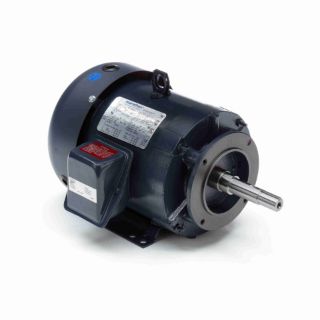

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

GT3109

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

182TTFB6006

Features

Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007 Inverter Duty 10:1 Variable Torque and 2:1 Constant Torque Dual rated motors are nameplated 60/50 hertz, 190/380 volts at next lower HP Class F Insulation Standard assembly F1, reversible to F2 assembly

Specifications

Assembly/Box Mounting:	F1/F2 CAPABLE
C Dim (IN):	17.51
CE:	Y
Connection Drawing Number:	EE7308
Country of Origin:	China
CSA:	Y
Current:	8.0/4.0
DE Bearing Size:	6206
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	86.5
Electrical Type:	Squirrel Cage Inverter Rated
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Material:	Rolled Steel
Frame Size:	182
Frame Suffix:	JM
Frame Type:	182JM
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	3
Insulation Class:	F
IP Code:	43
KVA Code:	H
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	2
Number of Speeds:	1
ODE Bearing Size:	6205
ODE Bearing Type:	Ball
Outline Drawing Number:	SS620560-182JM
Phases:	3
Power Factor:	86
Power Rating (HP):	3
Power Rating (kW):	2.2
Resistance Main:	3.45
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	0.875
Shaft Extension:	4.25
Shaft Type:	JM
Speed:	3505
Speed Max:	3505
Starting Type:	Line Or Inverter
Type of Overload Protector:	No
UL:	Recognized
Voltage:	230/460
