GUBBD212 APN

Name: GUBBD212 APN
Brand: Appleton
SKU: GUBBD212 APN
Availability: OutOfStock

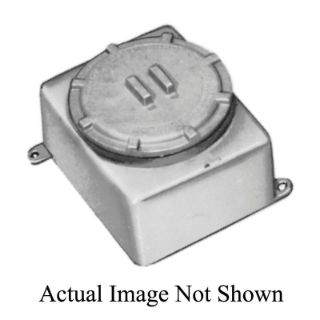

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

GUBBD212

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Type

Type GUBBD Form 2 Dust Ignition/Explosionproof

Description

Appleton® UNILETS™ Cast Junction Box, Type GUBBD Form 2 Dust Ignition/Explosionproof, For Use With: Threaded Metal Conduit, Malleable Iron, Electro-Plated Zinc/Chromate/Epoxy Powder Coated, 10 in L x 10-1/4 in W x 18.19 in D

Application

For drilling and tapping, maintenance, indoor, outdoor classified locations, used where the number and size of conductors require a junction box with additional space, used as pull boxes for pulling and splicing of wires and as an enclosure for electrical devices

Standards

UL 886/1203 | UL E85310 | CSA C22.2 No. 25, C22.2 No. 30 | CSA 025875 | NEC/CEC Class I, Division 1 and 2, Group D Class II, Division 1 and 2, Groups E, F, G Class III

Features

Accurately tapped, tapered conduit threads for tight, rigid joints and ground continuity
All conduit hubs and openings provide a minimum of five full threads to meet UL requirements
O-rings standard to provide raintight fit
Ideal for housing relays, contactors, terminal blocks and other classified area applications
Mounting plate can be drilled to accommodate a variety of devices
Corrosion resistant junction boxes provide access for maintenance

Specifications

Country of Origin:	US
Dimensions:	10 in L x 10-1/4 in W x 18.19 in D
Finish:	Electro-Plated Zinc/Chromate/Epoxy Powder Coated
Material:	Malleable Iron
Suitable For Use With:	Threaded Metal Conduit
