GUBC500-6 PAN

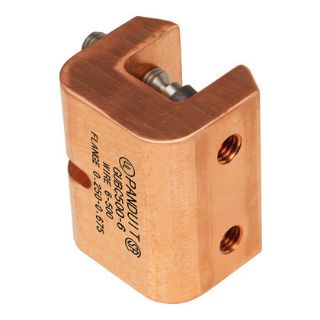

Picture of GUBC500-6 PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
GUBC500-6
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$478.84 / EA

Description

Brand Name

Panduit®

Type

Universal

Description

Panduit®, GUBC500-6, Grounding Clamp, Universal Beam, 1/2-13 Rod, Copper Conductor, 6 AWG to 500 kcmil Conductor, Lug Connection, 3.15 in L x 2.13 in W x 2.5 in H Dimensions

Application

For GLMHK hardware kit and 2-hole compression lug with 1.2 in stud hole, 1-3/4 in hole spacing and utility/ground grid

Standards

ARRA Compliant | Buy American Act Compliant | CSA 22.2 41-13Y | DB Rated | IEEE 837-200 | MIL-STD-202G | RoHS Compliant | UL 467

Features

  • Universal, fit on a wide range of standard (angled) and wide flange (parallel) structural steel beam
  • Provide a mounting pad suitable for a two hole compression lug
  • Install quickly and easily with a standard 1/4 in key hex wrench tooling

Includes

(2) Hex Head Bolts, (2) Split Lock washers and (2) SAE Flat Washers

Specifications

Conductor Size:6 AWG to 500 kcmil
Conductor Type:Copper
Connection Type:(2) Hole Compression Lug
Country of Origin:MX
Dimensions:3.15 in L x 2.13 in W x 2.5 in H
Material:Copper
Rod Size:1/2-13
