GUBC500-6TP PAN

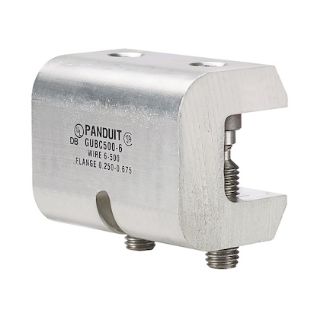

Picture of GUBC500-6TP PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
GUBC500-6TP
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 6 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Panduit®

Type

Universal Beam

Description

Panduit®, GUBC500-6TP, Grounding Clamp, Universal Beam, Series: GUBC, 1/2-13 Rod, Copper Conductor, 6 AWG to 500 kcmil Conductor, Lug Connection, Tin Plated, 3.15 in L x 2.13 in W x 2.5 in H Dimensions

Application

For direct burial in earth/concrete, wide range of standard angled and wide flange parallel structural steel beams

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | IEEE 837 | cULus 467 | DB Rated | CSA 22.2 | Military Specification 202G

Specifications

Bar Thickness:1/4 to 5/8 in
Conductor Size:6 AWG to 500 kcmil
Conductor Type:Copper
Connection Type:Compression Lug
Country of Origin:MX
Dimensions:3.15 in L x 2.13 in W x 2.5 in H
Finish:Tin Plated
Material:Copper
Rod Size:1/2 in
Series:GUBC
