GVFTD1 1/4 TKN

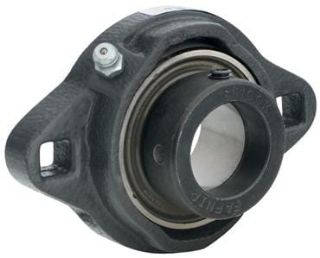

Picture of GVFTD1 1/4 TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
GVFTD1 1/4
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$361.79 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Fafnir®

Type

Normal Duty Relubricatable

Description

Timken® ball housed units, available in a variety of sizes and types, feature wide-inner-ring ball bearings that provide additional shaft support and locking options. The Timken® wide-inner-ring ball bearing is designed for straight shafts and can be positioned without shoulders, locknuts or adapters.
Timken® Fafnir®, GVFTD1 1/4, Flange Mount Ball Bearing Unit, Normal Duty Relubricatable, Series: GVFTD, 1-1/4 in Bore, 3-15/16 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 4-13/16 in Overall Length/Diameter, 1-21/32 in Overall Depth, 1.656 in Overall Height, Eccentric Locking Device, Steel Bearing, 6.4 lb Dynamic/3.44 lb Static Load, 3930 rpm Maximum, -30 to 275 deg F, Uncoated

Application

Agriculture, Food Processing, Fans, Blowers and Conveyors

Features

The malleable-iron flange cartridges provide self-alignment and rigid support

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:3-15/16 in
Bore Diameter:1-1/4 in
Finish:Uncoated
Flange Mounting Type:2-Bolt
Load Capacity:6.4 lb Dynamic/3.44 lb Static
Locking Device:Eccentric
Maximum Speed:3930 rpm
Overall Depth:1-21/32 in
Overall Height:1.656 in
Overall Length/Diameter:4-13/16 in
Series:GVFTD
Temperature Rating:-30 to 275 deg F

Products Specifications

Brand Name
Timken
Flange Type
2 Bolt Flange
Measuring Units
Inch
Shaft Diameter
1 1/4 in
