GVFTD1 3/8 TKN

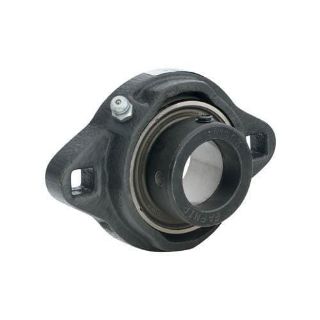

Picture of GVFTD1 3/8 TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
GVFTD1 3/8
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$354.70 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Fafnir®

Type

Face Mounted Round Bore Standard Duty

Description

Designed to maximize performance, Timken® Fafnir® Ball Bearing Housed Units combine the bearing, housing, seal and locking system into one device for easy installation and operation. Timken® Fafnir® housed units feature specialized product lines to solve specific application concerns. Our problem solver series helps prevent downtime by using superior technology to keep equipment running efficiently and improve your bottom line.
Timken® Fafnir®, GVFTD1 3/8, Ball Bearing Housed Unit, Face Mounted Round Bore Standard Duty, Series: GVFTD Relubricatable Series, 1.256 in Bore, 3-15/16 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 4.8125 in OAL/2.83 in OD Overall Length/Diameter, 1.6562 in Overall Height, Eccentric Locking Device, Steel Bearing, 6.4 lb Dynamic/3.44 lb Static Load

Standards

Precision Class ABEC 1

Features

  • The malleable iron flange cartridges provide self-alignment and rigid support for medium duty applications
  • The mounting bolt holes are interchangeable with pressed steel flangette units of corresponding size
  • Unit is equipped with RRB wide inner ring ball bearings

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:3-15/16 in
Bore Diameter:1.256 in
Flange Mounting Type:2-Bolt
Load Capacity:6.4 lb Dynamic/3.44 lb Static
Locking Device:Eccentric
Overall Height:1.6562 in
Overall Length/Diameter:4.8125 in OAL/2.83 in OD
Series:GVFTD Relubricatable Series

Products Specifications

Brand Name
Timken
Flange Type
2 Bolt Flange
Measuring Units
Inch
Shaft Diameter
1 3/8 in
