GW1001 15/1 C WR HUB

Name: GW1001 15/1 C WR HUB
Brand: Hub City
SKU: GW1001 15/1 C WR HUB
Availability: OutOfStock

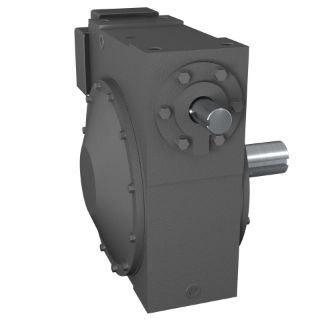

Actual Product May Vary From Image

Product Details

Manufacturer:

Hub City

Manufacturer part number:

0270-02560

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Single Reduction Style C

Description

Regal Beloit offers a broad selection of right angle worm gear reducers that range from an industry interchange design with modular accessories to cast iron and aluminum designs. These products are intended for a wide variety of applications.

Hub City® Worm Gear Reducer, Right Angle Single Reduction Style C, Series: GW100, 15:1 Gear Ratio, 52.8 hp Input, Shaft Input, Shaft Output, 2.25 in Dia x 3.76 in L Input, 3.75 in Dia x 6.76 in L Output, 119.3 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 26308 in-lb Output, 10 in Centre Distance, 1/2 x 1/4 in Input, 7/8 x 7/16 in Output Keyway, 94.4 % Efficiency, Conventional Oil Lubrication, Cast Iron, 25.47 in H

Application

Agriculture, Food, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Rugged cast iron housing
Oversized steel output shafts
Premium tapered roller bearings on output shafts
Large oil capacity

Specifications

Centre Distance:	10 in
Dimensions:	25.47 in H
Efficiency:	94.4 %
Gear Ratio:	15:1
Horsepower:	52.8 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	2.25 in Dia x 3.76 in L
Input Type:	Shaft
Keyway Size:	1/2 x 1/4 in Input, 7/8 x 7/16 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	119.3 rpm
Output Size:	3.75 in Dia x 6.76 in L
Output Type:	Shaft
Series:	GW100
Torque Rating:	26308 in-lb Output
