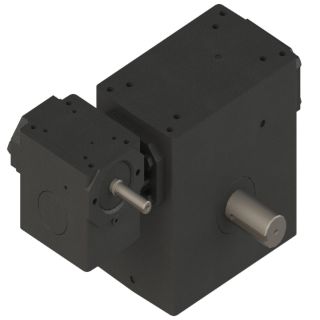

GW6001 100/1 DOUBLE OUTPUT HUB

Name: GW6001 100/1 DOUBLE OUTPUT HUB
Brand: Hub City
SKU: GW6001 100/1 DOUBLE OUTPUT HUB
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hub City

Manufacturer part number:

0270-02587

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Double Reduction Right Angle

Description

Regal Beloit offers a broad selection of right angle worm gear reducers that range from an industry interchange design with modular accessories to cast iron and aluminum designs. These products are intended for a wide variety of applications.

Hub City® Worm Gear Reducer, Double Reduction Right Angle, Series: GW6000, 100:1 Gear Ratio, 8.67 hp Input, Shaft Input, Shaft Output, 0.875 in Dia x 2.38 in L Input, 2.5 in Dia x 4.65 in L Output, 16.5 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 21417 in-lb Output, 6 in Centre Distance, 3/16 x 3/32 in Input, 5/8 x 5/16 in Output Keyway, 68.6 % Efficiency, Conventional Oil Lubrication, Cast Iron, 20 in W

Application

Agriculture, Food, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

Rugged cast iron housing
Oversized steel output shafts
Premium tapered roller bearings on output shafts
Large oil capacity

Specifications

Centre Distance:	6 in
Dimensions:	20 in W
Efficiency:	68.6 %
Gear Ratio:	100:1
Horsepower:	8.67 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	0.875 in Dia x 2.38 in L
Input Type:	Shaft
Keyway Size:	3/16 x 3/32 in Input, 5/8 x 5/16 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	16.5 rpm
Output Size:	2.5 in Dia x 4.65 in L
Output Type:	Shaft
Series:	GW6000
Torque Rating:	21417 in-lb Output
