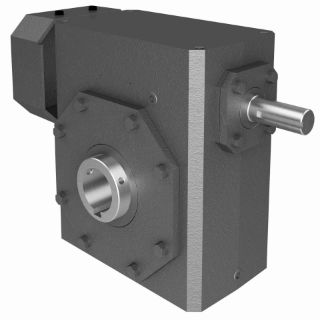

GW602 7.5/1 A WR 3.000 HUB

Name: GW602 7.5/1 A WR 3.000 HUB
Brand: Hub City
SKU: GW602 7.5/1 A WR 3.000 HUB
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hub City

Manufacturer part number:

0270-05122

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Single Reduction Style A

Description

Regal Beloit offers a broad selection of right angle worm gear reducers that range from an industry interchange design with modular accessories to cast iron and aluminum designs. These products are intended for a wide variety of applications.

Hub City® Worm Gear Reducer, Right Angle Single Reduction Style A, Series: GW60, 7.5:1 Gear Ratio, 29.98 hp Input, Shaft Input, Hollow Bore Output, 1.5 in Dia x 3.41 in L Input, 3 in Dia Output, 236.5 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 7704 in-lb Output, 6 in Centre Distance, 3/8 x 3/16 in Input, 1/2 x 1/4 in Output Keyway, 95.1 % Efficiency, Conventional Oil Lubrication, Cast Iron, 11-1/2 in W x 6-1/2 in H

Application

Agriculture, Food, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

Rugged cast iron housing
Oversized steel output shafts
Premium tapered roller bearings on output shafts
Large oil capacity

Specifications

Centre Distance:	6 in
Dimensions:	11-1/2 in W x 6-1/2 in H
Efficiency:	95.1 %
Gear Ratio:	7.5:1
Horsepower:	29.98 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	1.5 in Dia x 3.41 in L
Input Type:	Shaft
Keyway Size:	3/8 x 3/16 in Input, 1/2 x 1/4 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	236.5 rpm
Output Size:	3 in Dia
Output Type:	Hollow Bore
Series:	GW60
Torque Rating:	7704 in-lb Output
