GW605 30/1 WR 213TC 3.438 HUB

Name: GW605 30/1 WR 213TC 3.438 HUB
Brand: Hub City
SKU: GW605 30/1 WR 213TC 3.438 HUB
Availability: OutOfStock

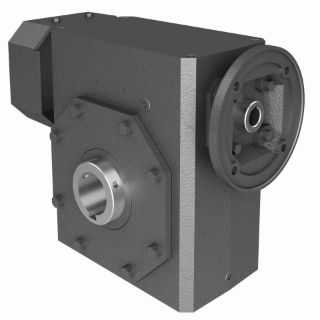

Actual Product May Vary From Image

Product Details

Manufacturer:

Hub City

Manufacturer part number:

0270-05810

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Single Reduction Style A

Description

Regal Beloit offers a broad selection of right angle worm gear reducers that range from an industry interchange design with modular accessories to cast iron and aluminum designs. These products are intended for a wide variety of applications.

Hub City® Worm Gear Reducer, Right Angle Single Reduction Style A, Series: GW60, 30:1 Gear Ratio, 11.18 hp Input, C-Face Quill Input, Hollow Bore Output, 1-3/8 in Dia Input, 3.438 in Dia Output, 59.3 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 10249 in-lb Output, 6 in Centre Distance, 3/16 x 3/32 in Input, 1/2 x 1/4 in Output Keyway, 84.8 % Efficiency, Conventional Oil Lubrication, Cast Iron, 11-1/2 in W

Application

Agriculture, Food, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Rugged cast iron housing
Oversized steel output shafts
Premium tapered roller bearings on output shafts
Large oil capacity

Specifications

Centre Distance:	6 in
Dimensions:	11-1/2 in W
Efficiency:	84.8 %
Gear Ratio:	30:1
Horsepower:	11.18 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	1-3/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	3/16 x 3/32 in Input, 1/2 x 1/4 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	59.3 rpm
Output Size:	3.438 in Dia
Output Type:	Hollow Bore
Series:	GW60
Torque Rating:	10249 in-lb Output
