GW701 40/1 C HUB

Name: GW701 40/1 C HUB
Brand: Hub City
SKU: GW701 40/1 C HUB
Availability: OutOfStock

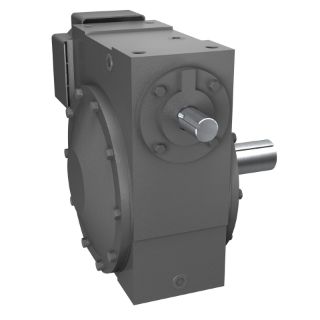

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City

Manufacturer part number:

0270-02547

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Single Reduction Style C

Description

Regal Beloit offers a broad selection of right angle worm gear reducers that range from an industry interchange design with modular accessories to cast iron and aluminum designs. These products are intended for a wide variety of applications.

Hub City® Worm Gear Reducer, Right Angle Single Reduction Style C, Series: GW70, 40:1 Gear Ratio, 10.9 hp Input, Shaft Input, Shaft Output, 1.625 in Dia x 2.98 in L Input, 2.75 in Dia x 5.65 in L Output, 43.8 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 13399 in-lb Output, 7 in Centre Distance, 3/8 x 3/16 in Input, 5/8 x 5/16 in Output Keyway, 85.5 % Efficiency, Conventional Oil Lubrication, Cast Iron, 18.91 in H

Application

Agriculture, Food, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Rugged cast iron housing
Oversized steel output shafts
Premium tapered roller bearings on output shafts
Large oil capacity

Specifications

Centre Distance:	7 in
Dimensions:	18.91 in H
Efficiency:	85.5 %
Gear Ratio:	40:1
Horsepower:	10.9 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	1.625 in Dia x 2.98 in L
Input Type:	Shaft
Keyway Size:	3/8 x 3/16 in Input, 5/8 x 5/16 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	43.8 rpm
Output Size:	2.75 in Dia x 5.65 in L
Output Type:	Shaft
Series:	GW70
Torque Rating:	13399 in-lb Output
