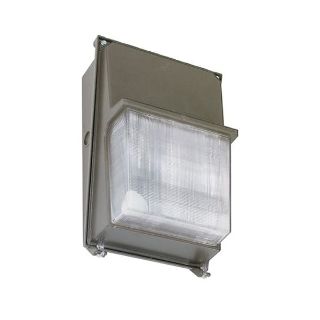

GWM230L12RH APN

Name: GWM230L12RH APN
Brand: Appleton
SKU: GWM230L12RH APN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

G-WM230L-12RH

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Type

Enclosed and Gasketed

Description

Appleton® Wallmaster™ high pressure sodium wall mount luminaires are designed to be mounted vertically or horizontally. These totally enclosed luminaires are ideal for use in as security lighting in public installations. The tough polycarbonate refractor provides vandal resistance. The Wallmaster™ is ideal for use where illumination over wide areas adjacent to walls is required.

Appleton® Wallmaster™ HID Parking Light Fixture, Enclosed and Gasketed, 120 V, 0.75 A, B17 High Pressure Sodium Lamp, 70 W Lamp, Medium Lamp Base Type, HPF Ballast, Prismatic Polycarbonate Refractor Lens, 6300 Lumens, Vertical Mount, Die-Cast Copper-Free Aluminum Housing, Architectural Bronze Polyester Housing, 9-13/16 in W x 6-3/8 in D x 15-1/8 in H

Application

For walkways, parking lots and garages, building exteriors, shopping centers, stores, restaurants, tunnels, underpasses, loading docks, ramps, security lighting areas, entrances and recreational areas, for use in wet locations, indoors and outdoors

Standards

CEC Listed | CSA LR9349 | NEC Listed | UL E85142/1598/1572

Features

Computer designed optical system, reflector provides optimum down and out light distribution, prismatic refractor provides soft light with even distribution, reducing glare
Contemporary architectural design with attractive bronze polyester finish, soft, diffused light enhances the beauty of any architectural setting
High temperature neoprene gasketing
Easy to maintain, hinged lens frame swings open (just loosen two captive bolts) for fast, easy relamping and access to internal components
Quick, easy installation, fixture bolts to any flat surface or any standard 76.2 or 101.6 mm outlet box for vertical mounting
High energy efficiency, high pressure sodium lamps use approximately one-fourth as much electrical energy as incandescent lamps
Glass thermal barrier in 100 W and 150 W units protects polycarbonate lens from heat for longer lens life
Tough, molded polycarbonate refractor provides cool fixture operation
Three knockouts provided for conduit and wiring
Medium base porcelain socket with spring loaded nickel plated contacts
Without lamp

Specifications

Amperage Rating:	0.75 A
Ballast Type:	HPF
Country of Origin:	MX
Dimensions:	9-13/16 in W x 6-3/8 in D x 15-1/8 in H
Housing Finish:	Architectural Bronze Polyester
Housing Material:	Die-Cast Copper-Free Aluminum
Lamp Base Type:	Medium
Lamp Type:	B17 High Pressure Sodium
Lamp Wattage:	70 W
Lens Type:	Prismatic Polycarbonate Refractor
Lumens:	6300 Lumens
Mounting Type:	Vertical
Voltage Rating:	120 V
