GWM330L12RHPC APN

Name: GWM330L12RHPC APN
Brand: Appleton
SKU: GWM330L12RHPC APN
Availability: OutOfStock

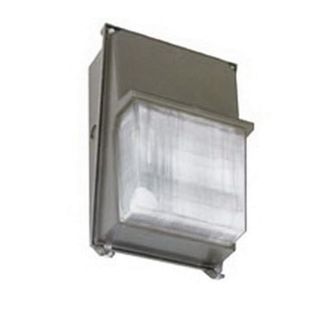

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

G-WM330L-12RHPC

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Description

Appleton® Wallmaster™ HID Parking Light Fixture, 120 VAC, 115 W Fixture, 1.5 A Starting/1.05 A Operating, High Pressure Sodium Lamp, 100 W Lamp, Medium Lamp Base, HPF/Reactor Ballast, Polycarbonate Lens, 9500 Lumens, Vertical Mount, Aluminum Housing, Two-Coat Bronze Polyester Housing, 15.13 in H x 9.81 in W

Application

Walkways, Parking Lots and Garages, Building Exteriors, Shopping Centers, Stores, Restaurants, Tunnels, Underpasses, Loading Docks, Ramps, Security Lighting Areas, Entrances and Recreational Areas

Standards

CSA File No. LR9349 | UL File No. E85142 | UL 1598

Features

Wallmaster luminaires provide vandal-resistant security and safety lighting, mounting to walls in indoor or outdoor public spaces to illuminate a wide area
Computer designed optical system and reflector provides optimum down and out light distribution
Prismatic refractor provides soft light with even distribution, reducing glare and enhancing the beauty of any architectural setting
Contemporary architectural design with attractive bronze polyester finish
Soft, diffused light enhances the beauty of any architectural setting
Enclosed and gasketed for use in wet locations indoors and out and high temperature neoprene gasketing
Easy to maintain and hinged lens frame swings open (just loosen two captive bolts) for fast, easy relamping and access to internal components
Quick, easy installation and fixture bolts to any flat surface or any standard 76.2 or 101.6 mm outlet box for vertical mounting
High energy efficiency and high pressure sodium lamps use approximately one-fourth as much electrical energy as incandescent lamps
Pre-wired, integrally ballasted
High reactance high power factor with or without photo control (automatic On-Off operation)
High power factor ballasts provide a minimum 90% power factor and are suitable for use in high ambient temperature areas
Glass thermal barrier in 100 W and 150 W units protects polycarbonate lens from heat for longer lens life
Tough, molded polycarbonate refractor provides cool fixture operation
Three knockouts provided for conduit and wiring
Medium base porcelain socket with spring loaded nickel plated contacts

Specifications

Amperage Rating:	1.5 A Starting/1.05 A Operating
Ballast Type:	HPF/Reactor
Country of Origin:	MX
Dimensions:	15.13 in H x 9.81 in W
Fixture Wattage:	115 W
Housing Finish:	Two-Coat Bronze Polyester
Housing Material:	Aluminum
Lamp Base Type:	Medium
Lamp Type:	High Pressure Sodium
Lamp Wattage:	100 W
Lens Type:	Polycarbonate
Lumens:	9500 Lumens
Mounting Type:	Vertical
Voltage Rating:	120 VAC
