GWM334HDT APN

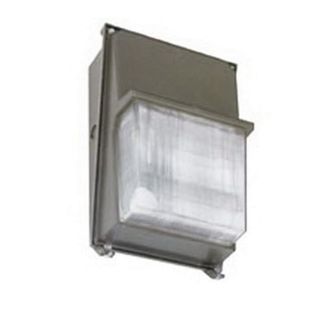

Picture of GWM334HDT APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
G-WM334H-DT
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Appleton®

Type

Type III IES

Description

Wall Master HPS and PSMH luminaires provide vandal-resistant security and safety lighting, mounting to walls in indoor or outdoor public spaces to illuminate a wide area.
Appleton® HID Luminaire, Type III IES, Series: ASL, 120/208/240/277 VAC, 115 W Fixture, 0.96/0.55/0.48/0.42 A, Pulse Start Metal Halide Lamp, 16 Lamps, 4000 K Color Temperature, 70 CRI, Polycarbonate Lens, 12674 Lumens, IP65 Enclosure, Surface Mounting, Aluminum Housing Material, Bronze/Polyester Housing Finish, 15.13 in H x 9.81 in W Dimensions

Application

Walkways, Parking Lots and Garages, Building Exteriors, Shopping Centers, Stores, Restaurants, Tunnels, Underpasses, Loading Docks, Ramps, Security Lighting Areas, Entrances and Recreational Areas

Standards

UL 1598 File No. E85142 | CSA File No. LR9349

Features

  • Computer designed optical system and reflector provides optimum down and out light distribution
  • Prismatic refractor provides soft light with even distribution, reducing glare
  • Contemporary architectural design with attractive bronze polyester finish
  • Soft, diffused light enhances the beauty of any architectural setting
  • Enclosed and gasketed for use in wet locations indoors and out and high temperature neoprene gasketing
  • Easy to maintain and hinged lens frame swings open (just loosen two captive bolts) for fast, easy relamping and access to internal components
  • Quick, easy installation and fixture bolts to any flat surface or any standard 76.2 or 101.6 mm outlet box for vertical mounting

Specifications

Amperage Rating:0.96/0.55/0.48/0.42 A
Color Rendering Index (CRI):70
Color Temperature:4000 K
Country of Origin:MX
Dimensions:15.13 in H x 9.81 in W
Enclosure Type:IP65
Fixture Wattage:115 W
Housing Finish:Bronze/Polyester
Housing Material:Aluminum
Lamp Type:Pulse Start Metal Halide
Lens Type:Polycarbonate
Lumens:12674 Lumens
Mounting Type:Surface
Number of Lamps:16
Series:ASL
Voltage Rating:120/208/240/277 VAC
