GWM430LMT APN

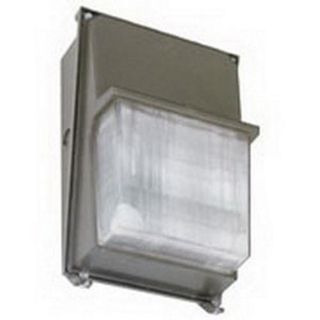

Picture of GWM430LMT APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
G-WM430L-MT
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Appleton®

Type

Enclosed Gasketed

Description

Wallmaster™ HPS and PSMH luminaires provide vandal-resistant security and safety lighting, mounting to walls in indoor or outdoor public spaces to illuminate a wide area.
Appleton® Wallmaster™ Luminaire, Enclosed Gasketed, 120/208/240/277 VAC, 188 W Fixture, 2/0.85 A Starting/1.65/0.72 A Operating, High Pressure Sodium Lamp, 150 W Lamp, B-17 Medium Lamp Base, 1 Lamp, Clear Light, High Reactance Ballast, Polycarbonate Lens, 6300 Lumens, Pre-Wired Cord, Wall Mounting, Aluminum Housing Material, Bronze Polyester Housing Finish, 18 in L x 9.81 in W x 6.38 in H

Application

Walkways, Parking Lots and Garages, Building Exteriors, Shopping Centers, Stores, Restaurants, Tunnels, Underpasses, Loading Docks and Ramps Applications

Standards

CEC Certified | CSA LR9349 | NEC Certified | UL E85142/1598

Features

  • Wallmaster™ luminaires provide vandal-resistant security and safety lighting, mounting to walls in indoor or outdoor public spaces to illuminate a wide area
  • Computer designed optical system provides optimum down and out light distribution
  • Prismatic refractor provides soft light with even distribution, reducing glare and enhancing the beauty of any architectural setting
  • Enclosed and gasketed with high temperature neoprene gasket, suitable for use in wet locations indoors or outdoors
  • Easy to relamp and maintain with hinged lens frame that swings open by loosening two captive bolts
  • Quick, easy installation fixture bolts to any flat surface or any standard 3 in or 4 in outlet box for vertical mounting
  • Prewired, integrally ballasted
  • High power factor ballasts provide a minimum 90% power factor and are suitable for use in high ambient temperature areas
  • Tough, molded polycarbonate refractor provides cool fixture operation
  • Three knockouts provided for conduit and wiring
  • High pressure sodium lamps use approximately one-fourth as much electrical energy as incandescent lamps
  • Two-coat bronze polyester finish

Specifications

Amperage Rating:2/0.85 A Starting/1.65/0.72 A Operating
Ballast Type:High Reactance
Cord Type:Pre-Wired
Country of Origin:MX
Dimensions:18 in L x 9.81 in W x 6.38 in H
Fixture Wattage:188 W
Housing Finish:Bronze Polyester
Housing Material:Aluminum
Lamp Base Type:B-17 Medium
Lamp Type:High Pressure Sodium
Lamp Wattage:150 W
Lens Type:Polycarbonate
Light Color:Clear
Lumens:6300 Lumens
Mounting Type:Wall
Number of Lamps:1
Voltage Rating:120/208/240/277 VAC
