H 1 MSG

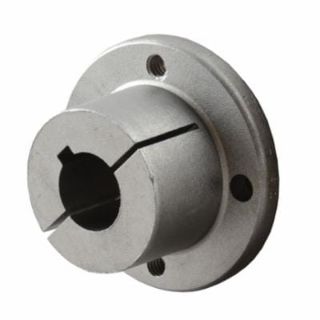

Picture of H 1 MSG
Actual Product May Vary From Image

Product Details

Manufacturer:
Martin Sprocket & Gear
Manufacturer part number:
H 1
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$18.97 / EA

Description

Brand Name

Martin

Type

Standard

Description

MST® bushings are easy to install and remove. They are split through the barrel and have a taper to provide a true clamp on the shaft. They are keyed to both the shaft and the hub to help during "blind" installations.
Martin MST Bushing, Standard, 1 in Bore Dia, 1.57 in Small End/1.625 in Large End Barrel Dia, 2-1/2 in Hub Dia, 2 in Bolt Circle, 2-1/2 in Flange Dia, 1/4 in Flange Thickness, 2 Bolt Holes, 1/4-20 x 3/4 in Screw, For Use With: MST® Sprockets and HH1/HCH1 Weld-On Hubs, 1-1/4 in Overall Length, 1/4 x 1/8 in Keyway, Steel

Standards

ANSI B15.1

Features

  • Size 1/H bushing
  • Tolerances meet or exceed industry standards
  • Precise machining and processes ensure consistent finish and high quality
  • Interchangeable with other manufacturers’ split-taper bushings

Specifications

Barrel Diameter:1.57 in Small End/1.625 in Large End
Bolt Circle Diameter:2 in
Bore Diameter:1 in
Country of Origin:US
Flange Diameter:2-1/2 in
Flange Thickness:1/4 in
Hub Diameter:2-1/2 in
Keyway Size:1/4 x 1/8 in
Material:Steel
Number of Bolt Holes:2
Overall Length:1-1/4 in
Screw Size:1/4-20 x 3/4 in
Suitable For Use With:MST® Sprockets and HH1/HCH1 Weld-On Hubs

Products Specifications

Bore Size
1"
Brand Name
Martin Sprocket & Gear
Bushing Series
H
Measuring Units
Inch
Type
QD® Bushing
