H0509 HWD

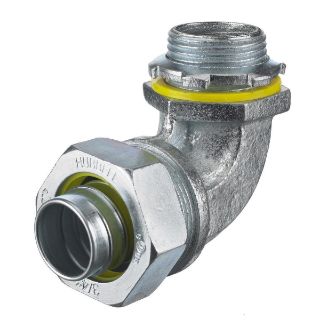

Picture of H0509 HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
H0509
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

Non-Insulated

Description

Wiring Device-Kellems Liquid Tight Conduit Connector, Non-Insulated, 1/2 in MNPT, 90 deg, 0.61 in Throat, For Use With: PolyTuff® I Flexible Non-Metallic and Liquid Tight Metal Conduit, Steel, Metallic, Zinc Plated, 1.31 in L x 1.34 in W x 1.44 in H

Application

Used in wet locations when a listed sealing ring is used between box and fitting

Standards

CSA Certified | Hazardous Location per, Class I, Division 2, Class II, Division 1/2, Class III, Division 1/2 | UL 514B | UL 898D | UL 899D

Features

  • Hexagonal, screw-machined steel thru 1 in and malleable iron on larger sizes
  • Nut compresses gland-ring onto conduit
  • Split, nylon, gland-ring compresses conduit onto ferrule
  • Non integral, reusable steel ferrule is easily installed, to seal conduit
  • Threaded 1-piece steel body
  • Tapered, machined threads fasten securely and provide additional liquidtight sealing
  • Locknut has hardened steel tangs to grip securely
  • Nylon gasket provides liquidtight seal at hub
  • 0.59 in L thread

Includes

Locknut

Specifications

Angle:90 deg
Color:Metallic
Country of Origin:CN
Dimensions:1.31 in L x 1.34 in W x 1.44 in H
Finish:Zinc Plated
Material:Steel
Mounting Type:Threaded
Suitable For Use With:PolyTuff® I Flexible Non-Metallic and Liquid Tight Metal Conduit
Throat Size:0.61 in
Trade Size:1/2 in

Products Specifications

Brand Name
Hubbell Wiring Device-Kellems
Conduit Type
LFMC
Connection
Cap Nut
Material
Steel
NEMA Rating
Class 1 Div 2, Class II Div 1 & 2, Class III Div 1 & 2
Type
Liquidtight Connector
