H1613 MAR

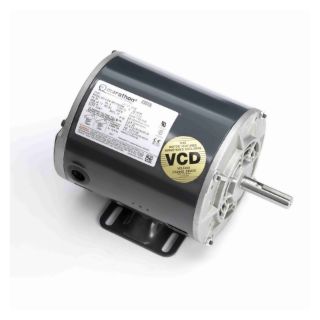

Picture of H1613 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
184TTDW7627
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Marathon®

Type

4-Pole Continuous Duty

Description

Marathon® AC Motor, 4-Pole Continuous Duty, General Purpose AC Motors Application, Inverter Ready Special Features, 5 hp, 200 VAC, 15.2 A, 60 Hz Frequency, 3 ph, 1755 rpm Speed, Drip-Proof Enclosure, 184T Frame, 1.13 in Dia x 2.75 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 22.82 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 13.19 in L x 10.64 in H

Application

For use on variable frequency drives

Standards

CE | CSA Certified | EISA Compliant | UL Listed

Features

Inverter Ready

Specifications

Amperage Rating:15.2 A
Application Type:General Purpose AC Motors
Bearing Type:Ball
Country of Origin:MX
Dimensions:13.19 in L x 10.64 in H
Enclosure Type:Drip-Proof
Frame:184T
Frequency Rating:60 Hz
Horsepower:5 hp
Insulation Class:Class F
Material:Rolled Steel
Mounting Type:Rigid Base
Phase:3 ph
Rotation:Reversible
Service Factor:1.15
Shaft Size:1.13 in Dia x 2.75 in L
Speed:1755 rpm
Temperature Rating:40 deg C
Torque Rating:22.82 ft-lb
Voltage Rating:200 VAC

Products Specifications

Brand Name
Marathon
Enclosure
Drip Proof
Horsepower
5 HP
Speed Rating
1755
Type
Squirrel Cage Induction Run
Voltage Rating
200 V
