H1668 MAR

Name: H1668 MAR
Brand: Marathon Electric Motors
SKU: H1668 MAR
Availability: OutOfStock

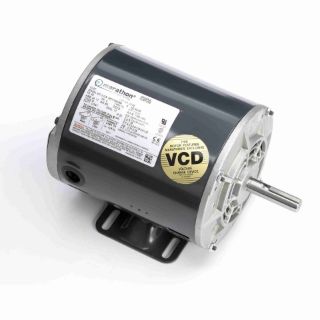

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

H1668

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

184TTFW7727

Features

Frame constructions are heavy gauge steel or Aluminum, as noted Ball bearings (except as noted) 1.15 Service Factor (except as noted) 60/50 hertz at next lower horsepower, as noted Will accept C-Face Kits as noted, also see Accessories section UL Recognized and CSA Certified

Specifications

Assembly/Box Mounting:	F1/F2 Capable
C Dim (IN):	13.96
CE:	Y
Connection Drawing Number:	005102.01ME
Country of Origin:	Mexico
CSA:	Y
Current:	15.0
DE Bearing Size:	6206
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	87.5
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Length (IN):	8.5
Frame Material:	Rolled Steel
Frame Size:	184
Frame Suffix:	T
Frame Type:	184T
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	5
Insulation Class:	F
IP Code:	43
KVA Code:	J
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6205
ODE Bearing Type:	Ball
Outline Drawing Number:	035604-850
Phases:	3
Power Factor:	82.1
Power Rating (HP):	5
Power Rating (kW):	3.7
Resistance Main:	3.08
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	1.125
Shaft Extension:	2.75
Shaft Type:	T
Speed:	1760
Speed Max:	1760
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	200
